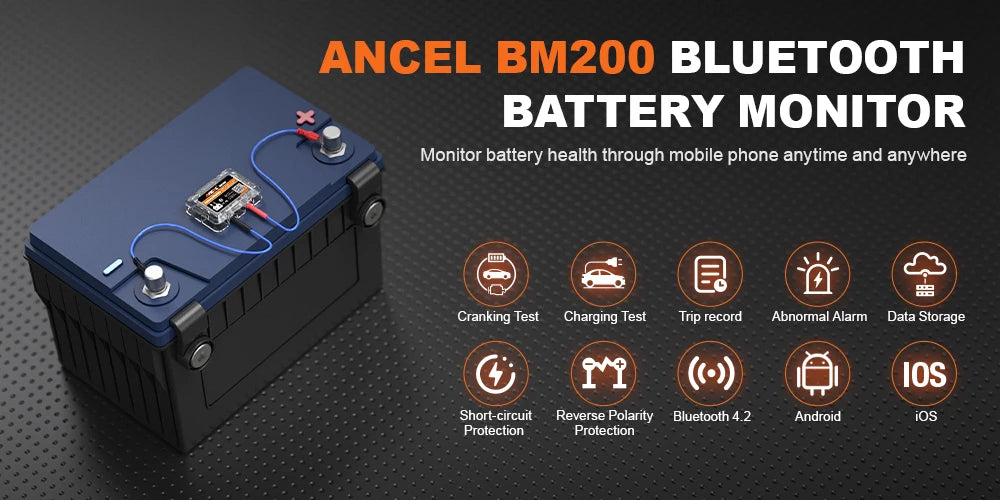

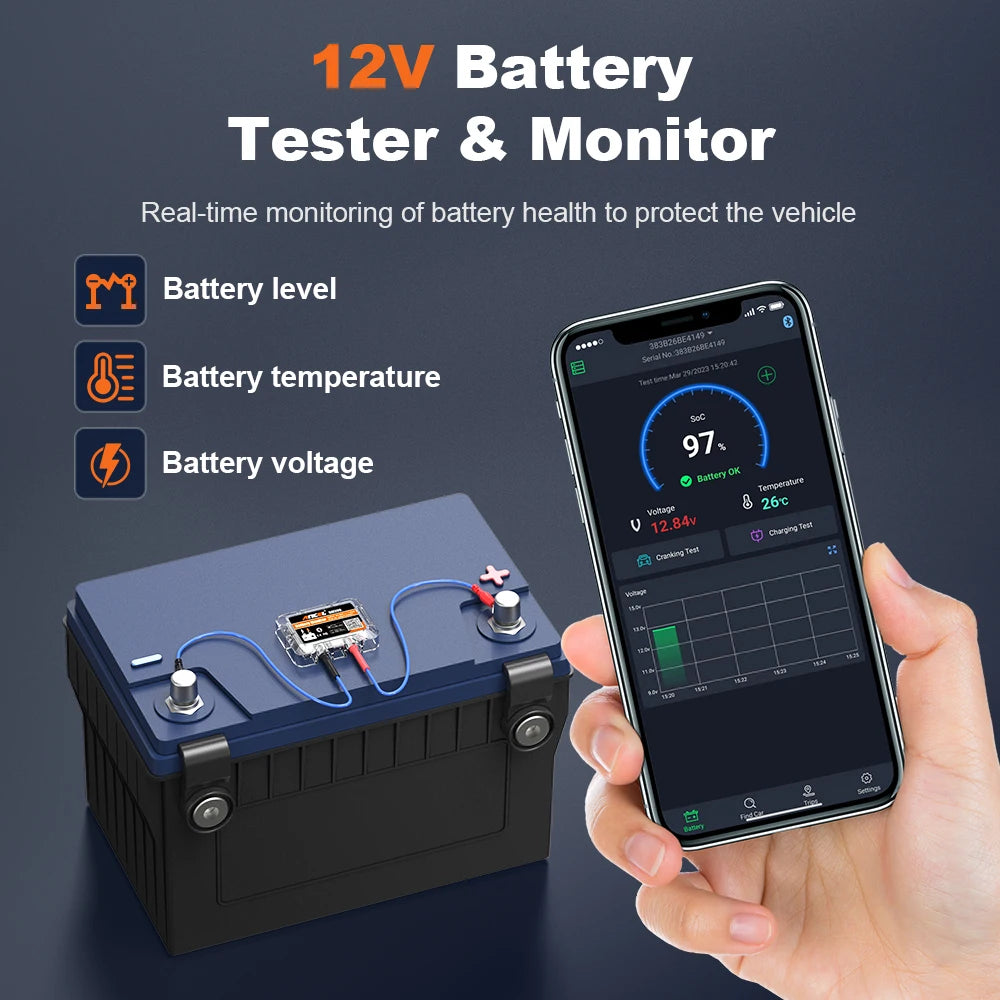

12V Battery Monitor Wireless Bluetooth Car Battery Health APP Monitoring Battery Tester Tools For Android IOS

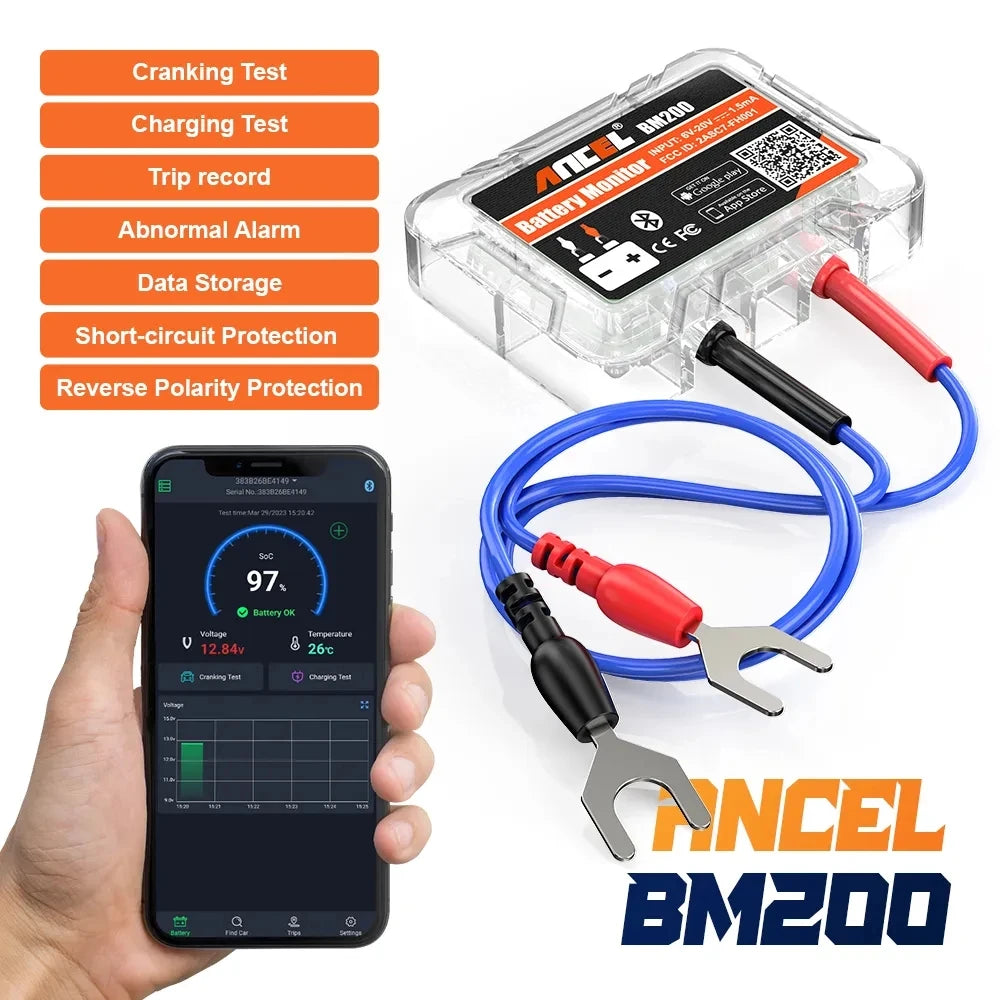

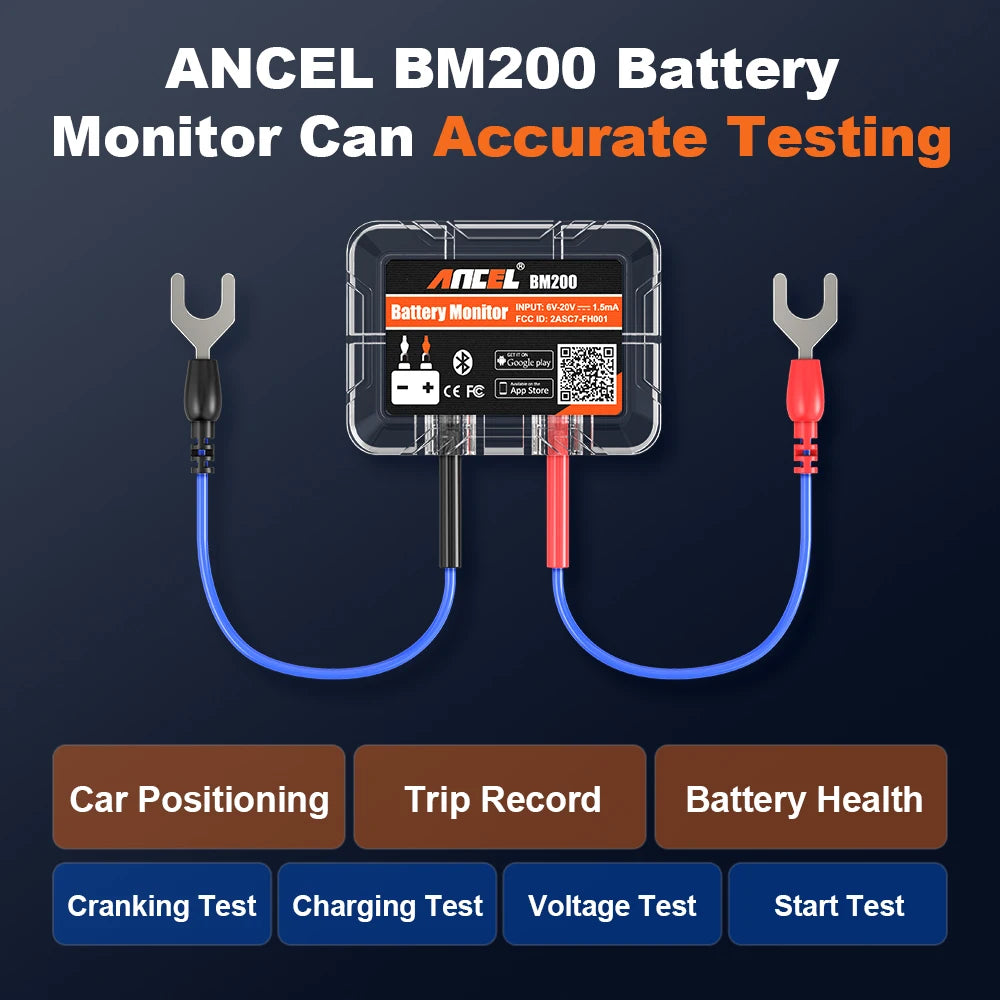

ANCEL BM200 Main Functions:

1.Receives notifications of battery conditions in Bluetooth range.
2.Checks vehicle cranking system automatically while engine is starting.
3.Checks charging system (alternator)
4.Lists the time of each driving.
5.Alerts mobile phone if detects abnormal data.
6.Short-circuit and reverse connection protection.
7.Data stored in battery monitor up to 30 days if out of sync.
8.Automatic synchronisation when in Bluetooth range.
9.Compatible with all 12V vehicle batteries.
10.Shows historical data graphically.
11.Engine starting detection automatically.

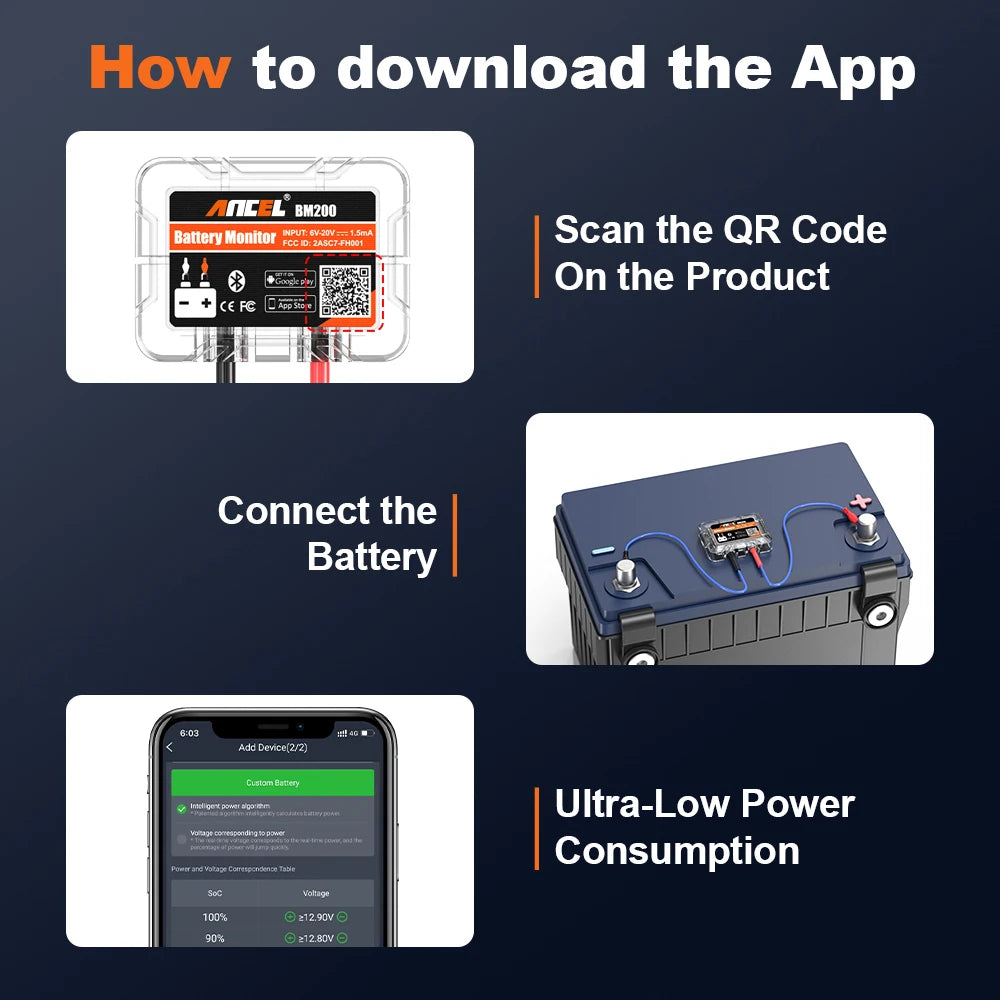

12.Free app for iOS and Android.

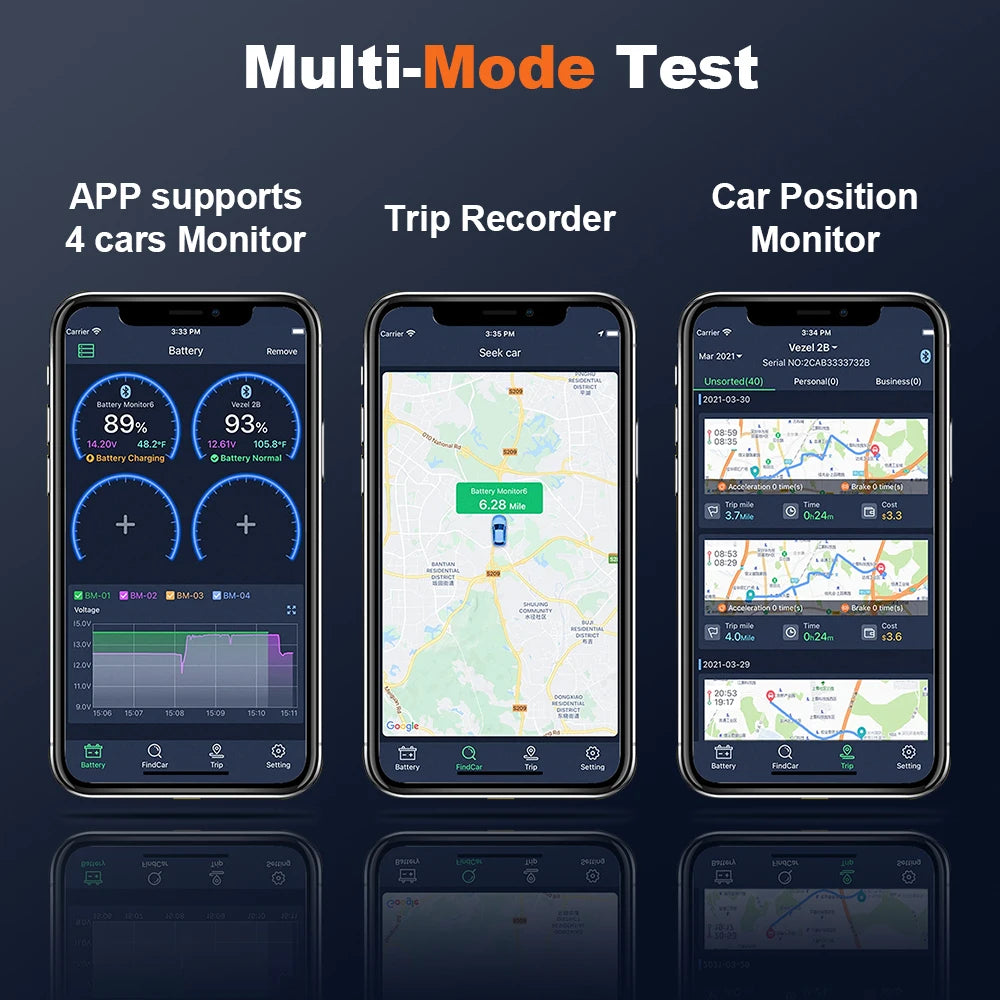

13.Support multi-battery management
14. Exclusive private account, data will not be lost
15.Car location seeking function via google map.
16. Trip record with map and route.

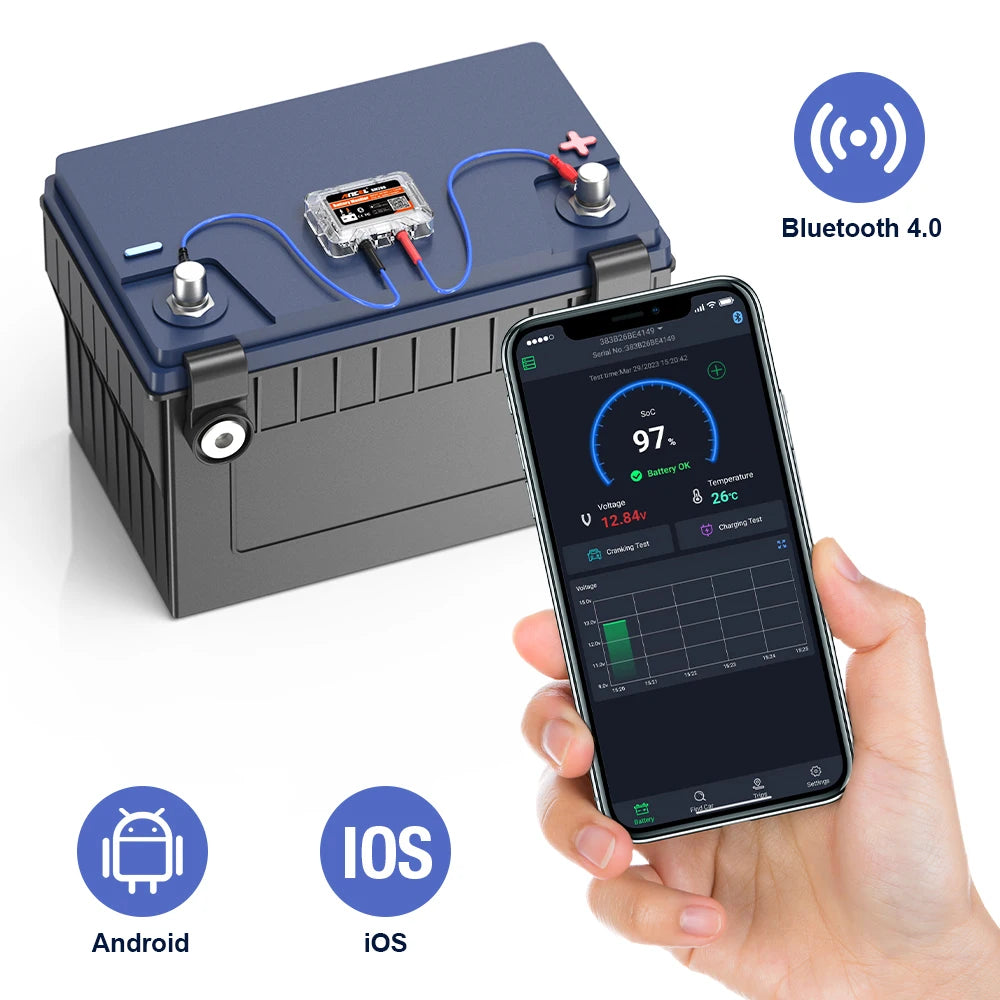

17.Works with all 12V batteries./Wireless (Bluetooth 4.2) in10 meter./ Software included for Android and iPhone./All Apps for Android and iPhone are designed by ourselves,download for free via Internet.

Vehicle Coverage

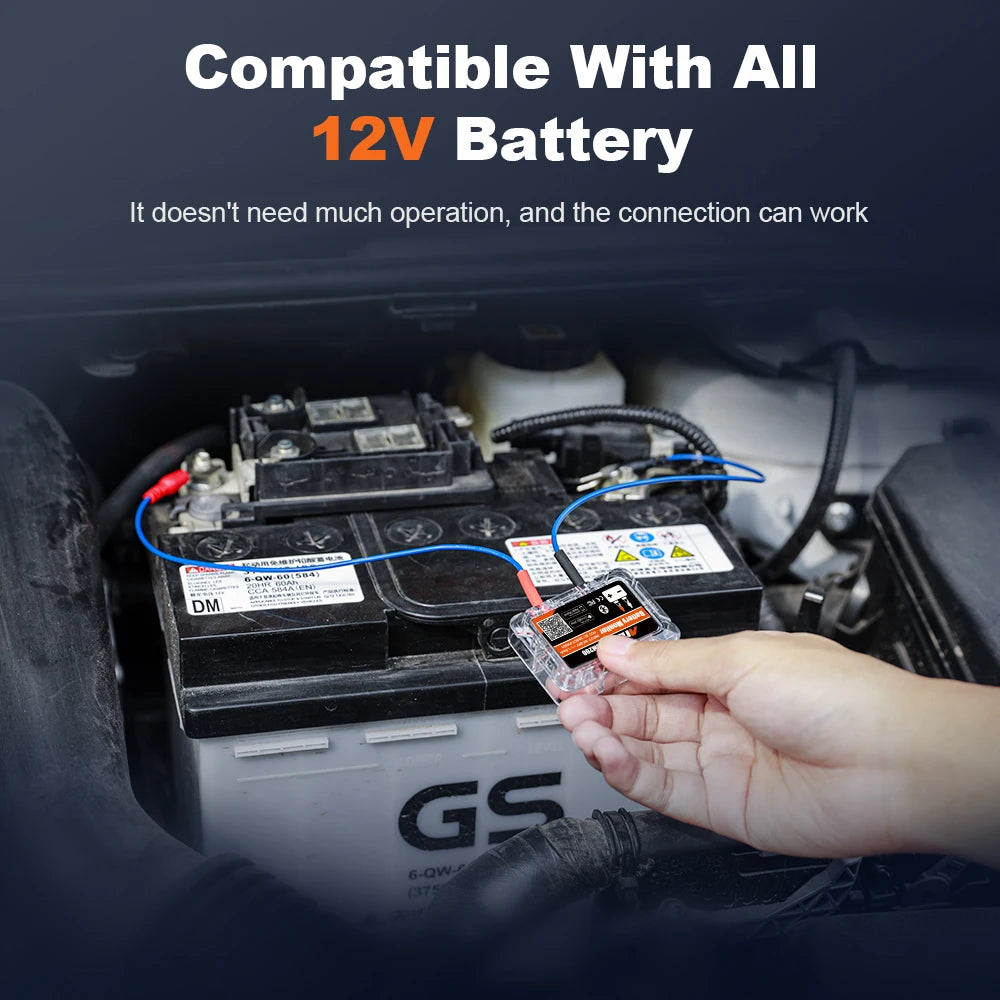

All 12V batteries, including motorcycle, car, SUVs, MPVs, light trucks, trucks, and boats.
Including the Lead-Acid, AGM, GEL, EPB batteries.

Specifications:

1. Product Name: Battery Monitor
2. Bluetooth Version: 4.2
3. Bluetooth Name: BM200
4. Input Voltage: DC 6V ~ 20V
5. Voltage Accuracy (9V~16V): ±0.03V
6. Average Working Current: 1.5mA
7. Working Temperature: -40°C~90°C (-40°F~194°F)
8. Reverse Connection Protection: Built in
9. Short-circuit Protection: Built in
10. Waterproof: IP67

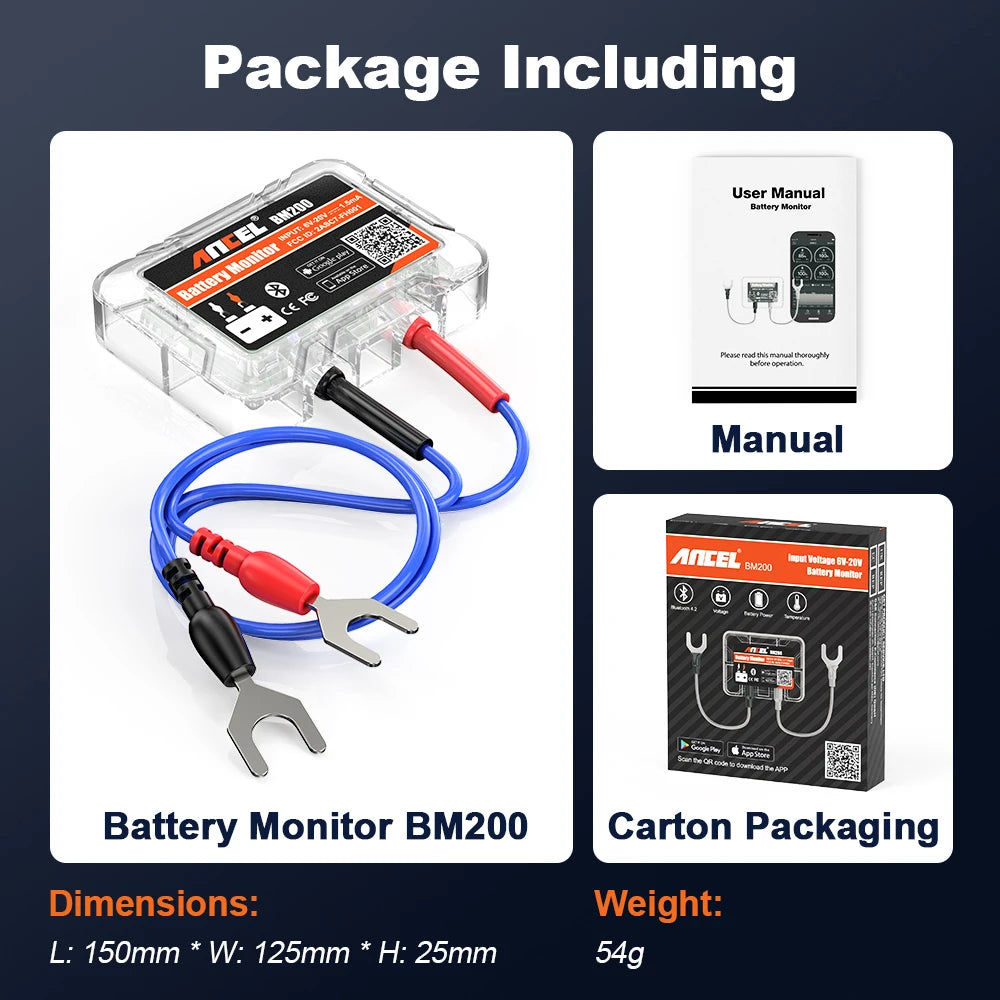

11. Physical Dimensions: (L)55mm x (W)41mm x (H)12.5mm

FAQ AND SOLUTION

· Phenomenon 1:

Need to enter a PIN code for Bluetooth connection ?

· Solution :

When Bluetooth switch is turned on , some mobile phones system will automatically list al nearby Bluetooth device name . Please just ignore this PIN code pop - up , this Bluetooth connection no need PIN code . Re - run the app will automatically connect to the device .

· Phenomenon 2:

Bluetooth connect fail ?

· Solution :

Ensure that the Bluetooth switch of the mobile phone is turned on , and there are no other phones nearby to connect the device . Then try to restart the Bluetooth or restart the mobile phone . In addition , if the phone Bluetooth is connected with too many Bluetooth devices , it may alsO cause the Bluetooth not to connect properly .

· Phenomenon 3:

There is no track or parking position for the trip ?

· Solution :

1. Confirm that the GPS switch of the phone is turned on .

2. Confirm that the app has obtained the permission of the location service .

3. Confirm that the app is running and the device is connected .

4. Confirm that the ＂ GPS Track Server ＂ in the Settings of the app is turned on .

5. Confirm that the app can be started by itself and can run in the background . Detail shows at the end of this manual .

· Phenomenon 4:

There is no abnormal alarm notification ?

· Solution :

Go to the settings of the mobile phone and turn on the application notification permission .

· Phenomenon 5:

The display of battery power is inaccurate or no vehicle starting system data ?

· Solution :

Suitable for 12V lead - acid and LiFePO4 starting batteries of vehicle . If there is no in - vehicle usage scenario , such as no engine start behavior , the power may be inaccurate and there is no start data .

· Phenomenon 6:

The vehicle charging system cannot be tested ?

· Solution :

The test needs to be performed during engine running . It supports all ordinary alternators , and does not support smart alternators . If the test still does not work , please check with the vehicle manufacturer whether it is a smart alternator .

· Phenomenon 7:

The fuel cost statistics are inaccurate ?

· Solution :

Check whether the fuel consumption per 100KM and the fuel price are correctly filled in .

· Phenomenon 8:

The position or trajectory is sometimes correct , sometimes incorrect or not obtained ?

· Solution :

If the app can ' t be self - started and run in the background , the location data cannot be obtained . It is necessary to give the app the permission to self - start and run in the background , this needs to be operated in the settings of the phone .

1. Samsung mobile phone :

(1) Allow background activity

Settings Apps find the BM6 app Battery turn on the switch of ＂ Allow background activity ＂.

(2) Allow self － starting

Settings - Device care - Battery find the BM6 app - turn off the switch of " Put app to sleep ".

2. Huawei mobile phone :

Settings - Apps - App launch - find the BM6 app and select " Manage manualy ＂ Enable " Auto - launch ＂、＂ Secondary launch ＂ and " Run in background ＂ at the same time .
