ANENG 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable Multitester AC/DC Voltage Tester Current Tool
- $76.95
-
$108.00 - $76.95
- Unit price
- per
Buy 1 Get 5% OFF - Buy 2 Get 10% OFF
Please hurry! Only 311 left in stock
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free Returns
Shipping 5 - 12 Days

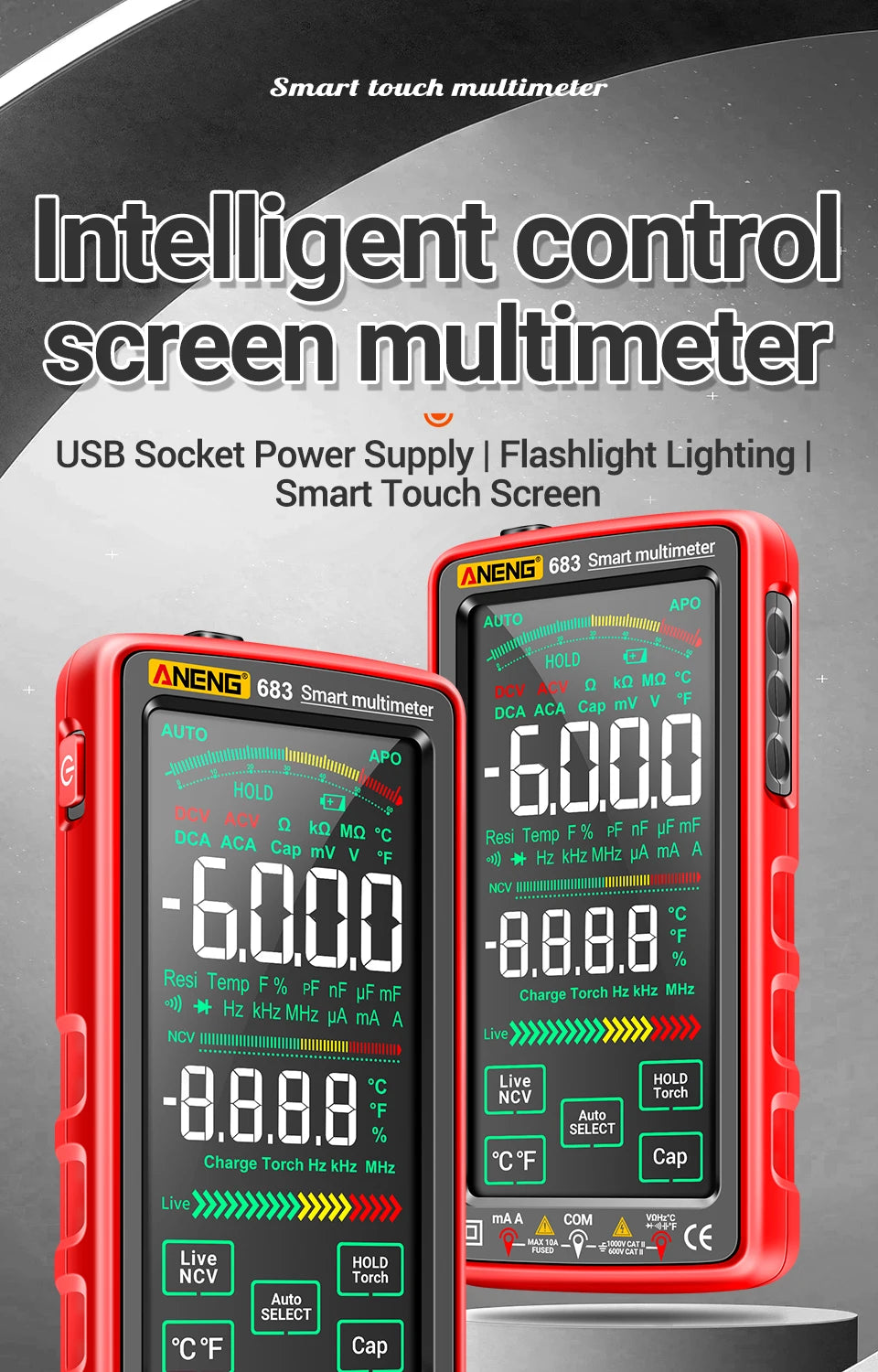

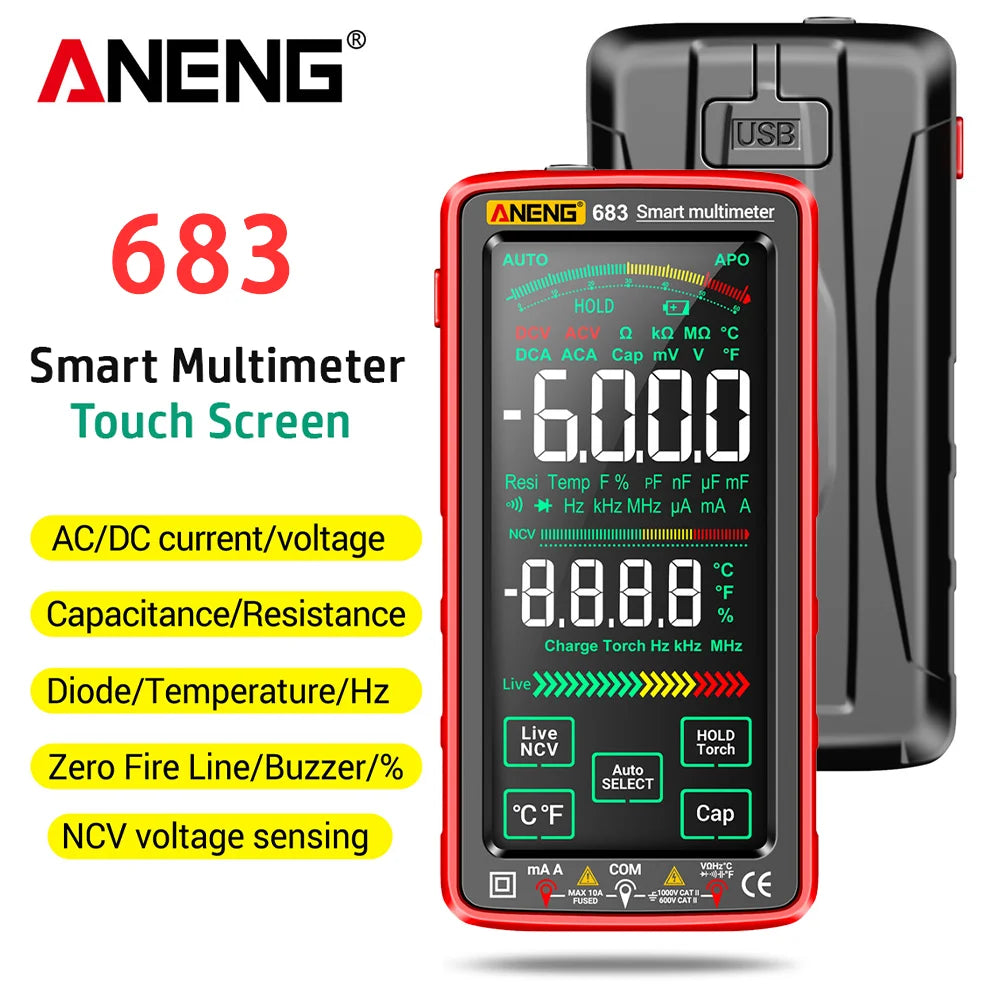

ANENG 683 High-end Touch Smart Multimeter
Introduce

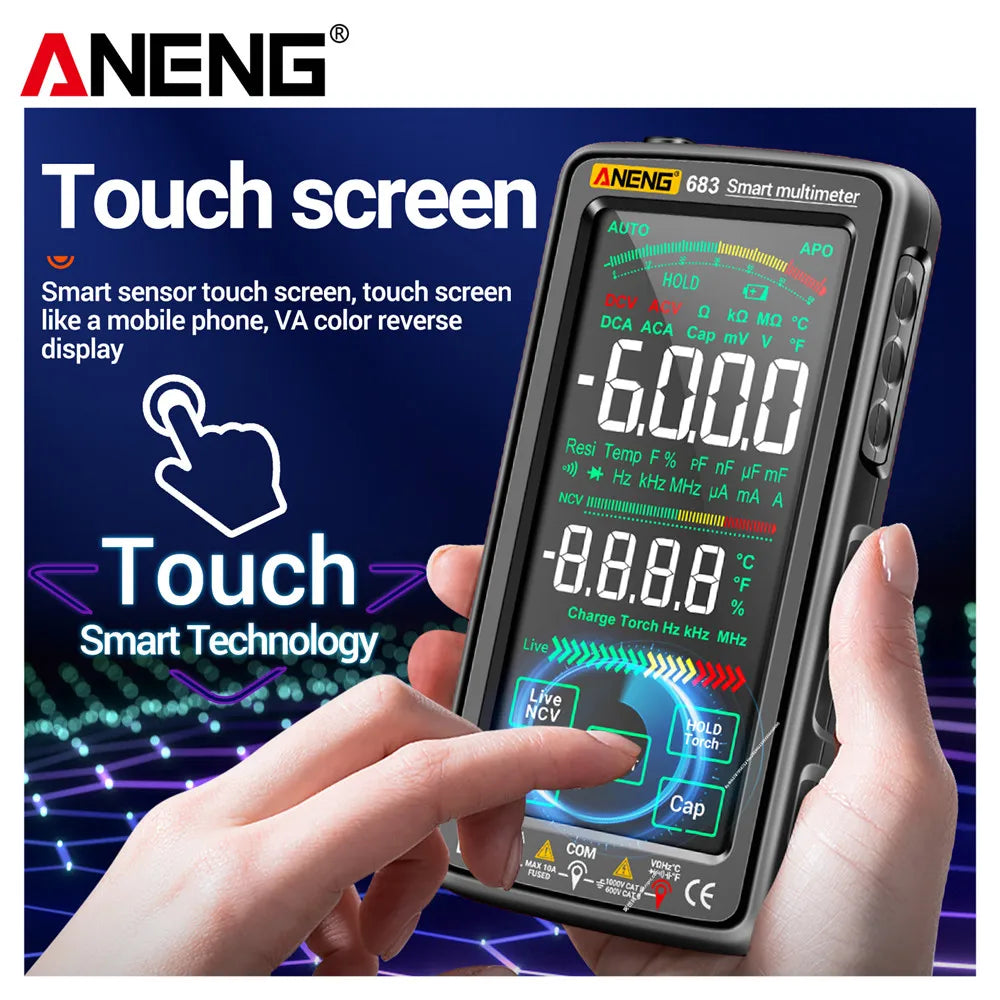

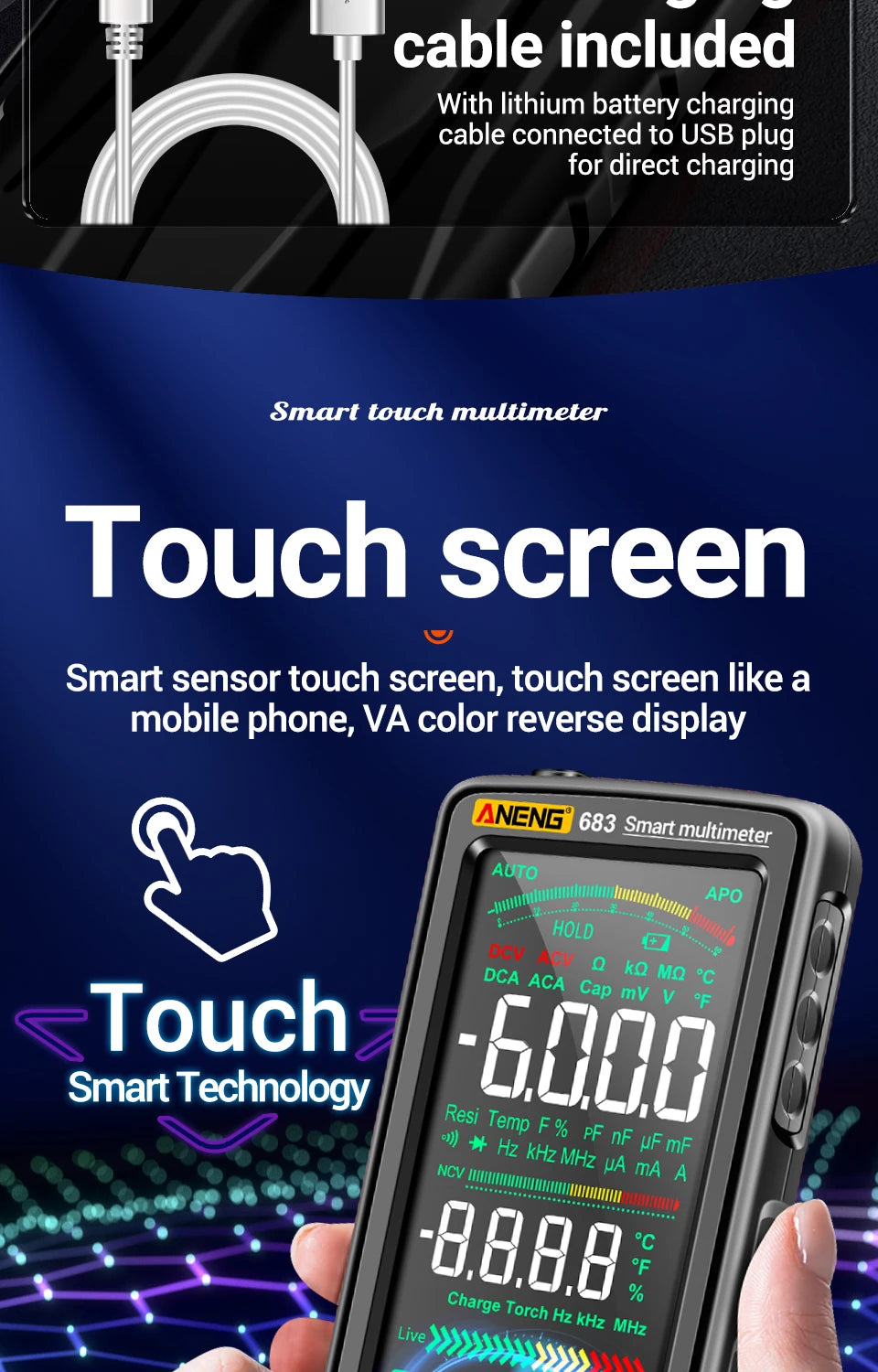

This device is a 3 5/6 digital multimeter with stable performance and realiable quality. The meter adopts LCD display screen with analog bar display. Users in the process of use,truly achieve continuous power operation, do not need to turn the dial to select functions. According to the input ac/DC voltage/resistance will be automatically identified and measured.

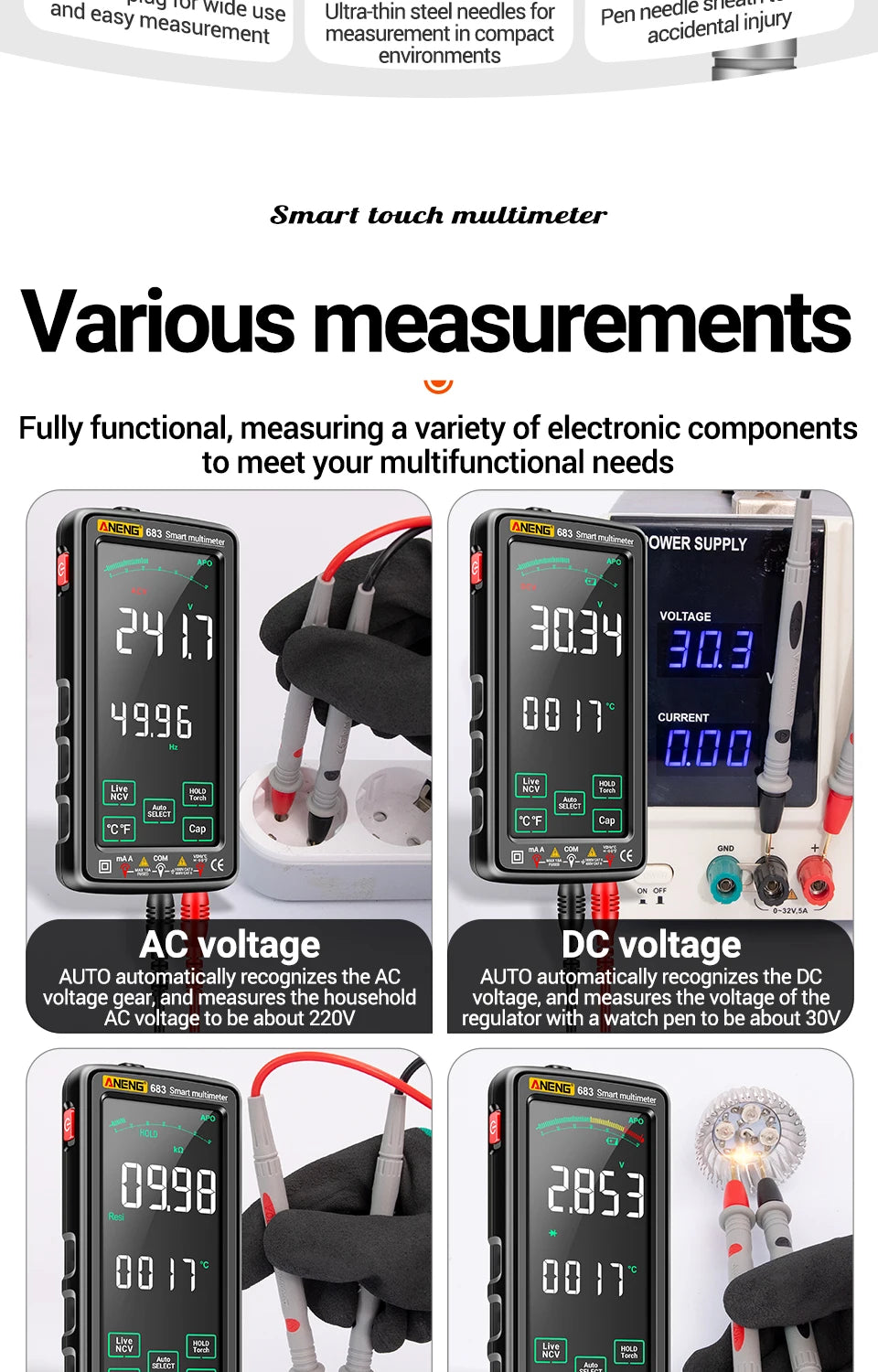

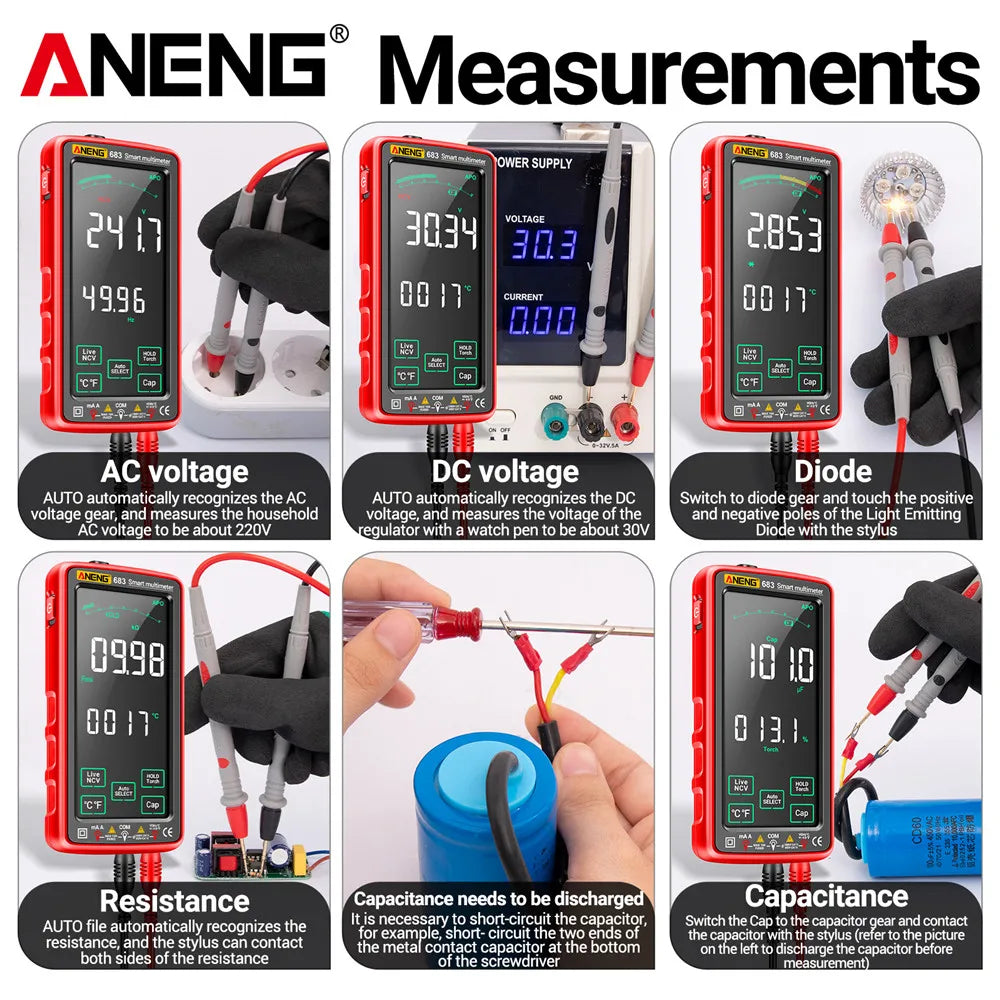

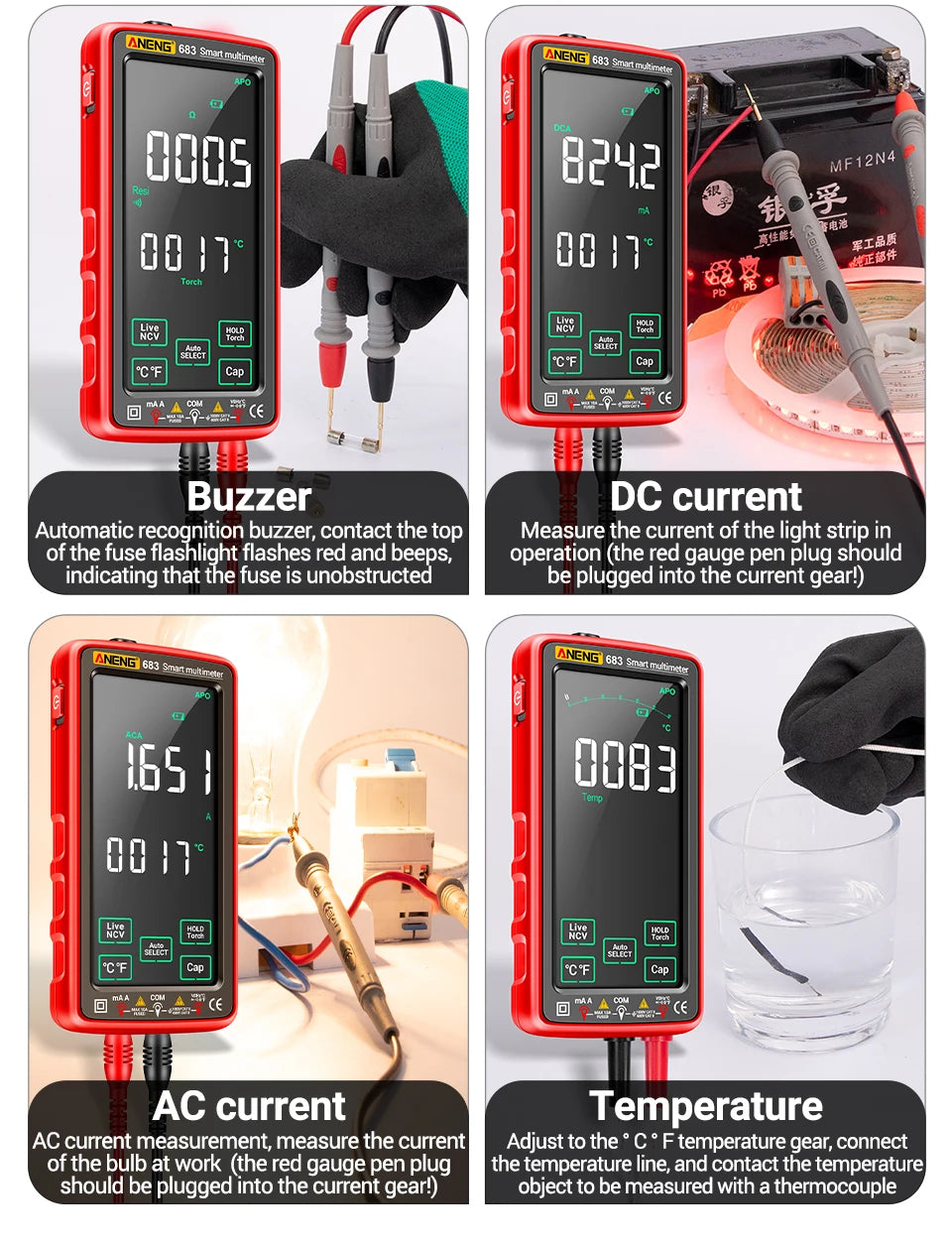

It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off.
The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.
Summary
Manual Range and Auto Range
Full range overloaded protectection
The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC
Fuse Protection:uA/mA
Display:6000 Counts LCD monitor with analog bar

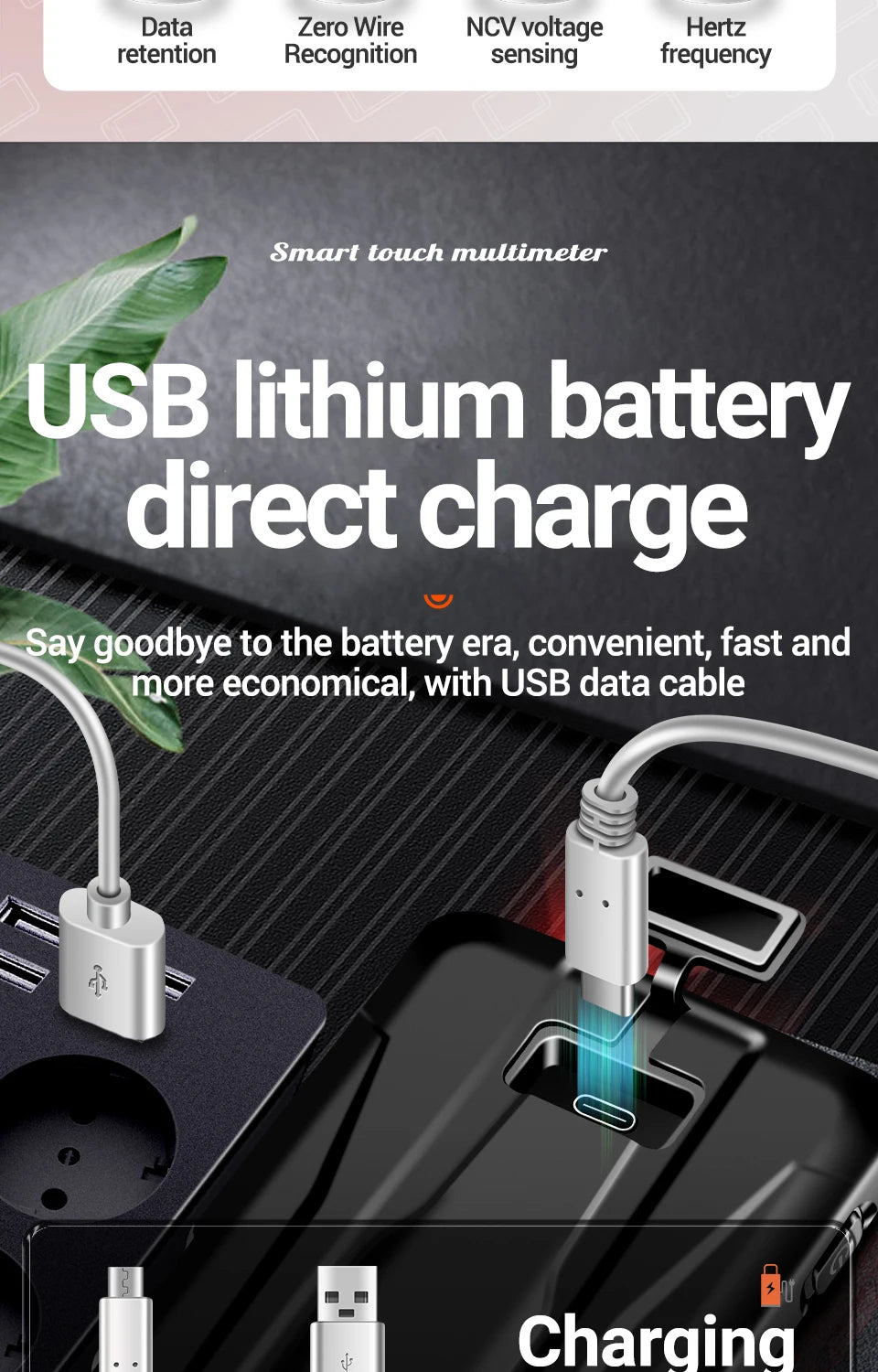

Battery Type:3.7V/2800mA rechargeable battery

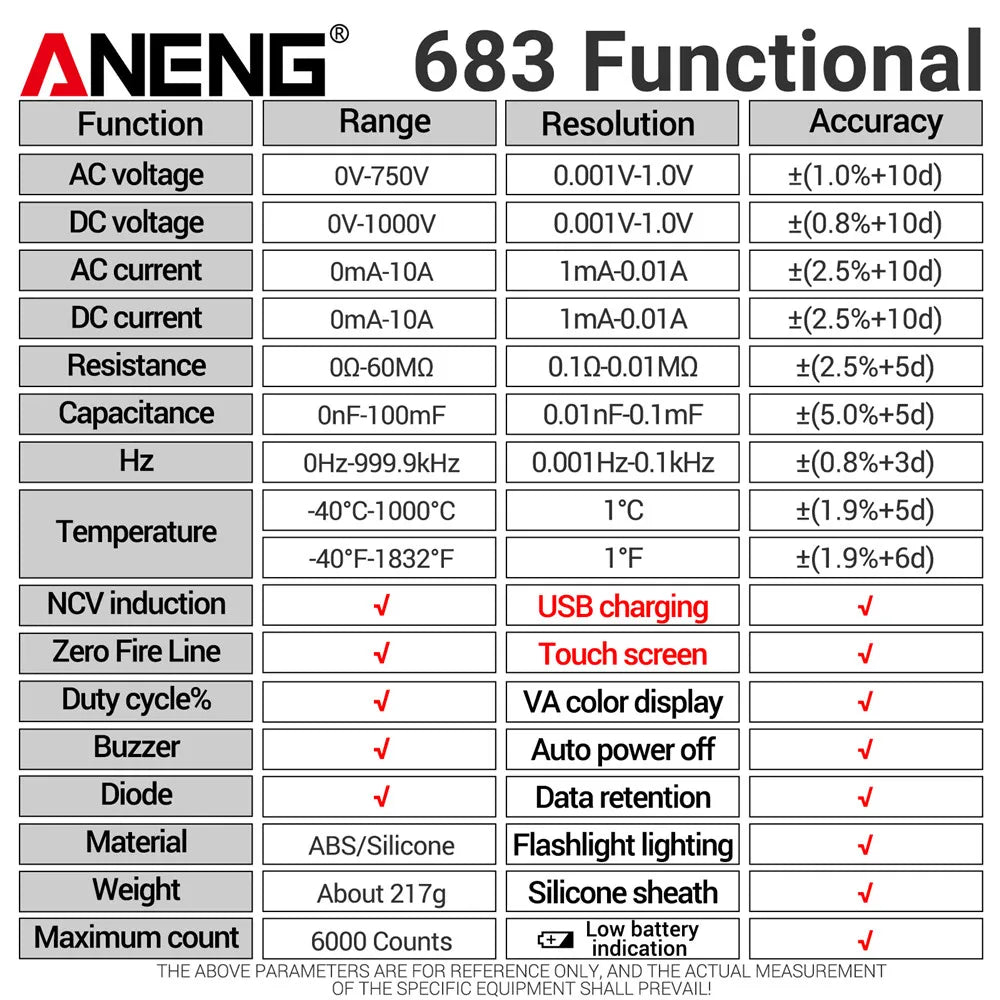

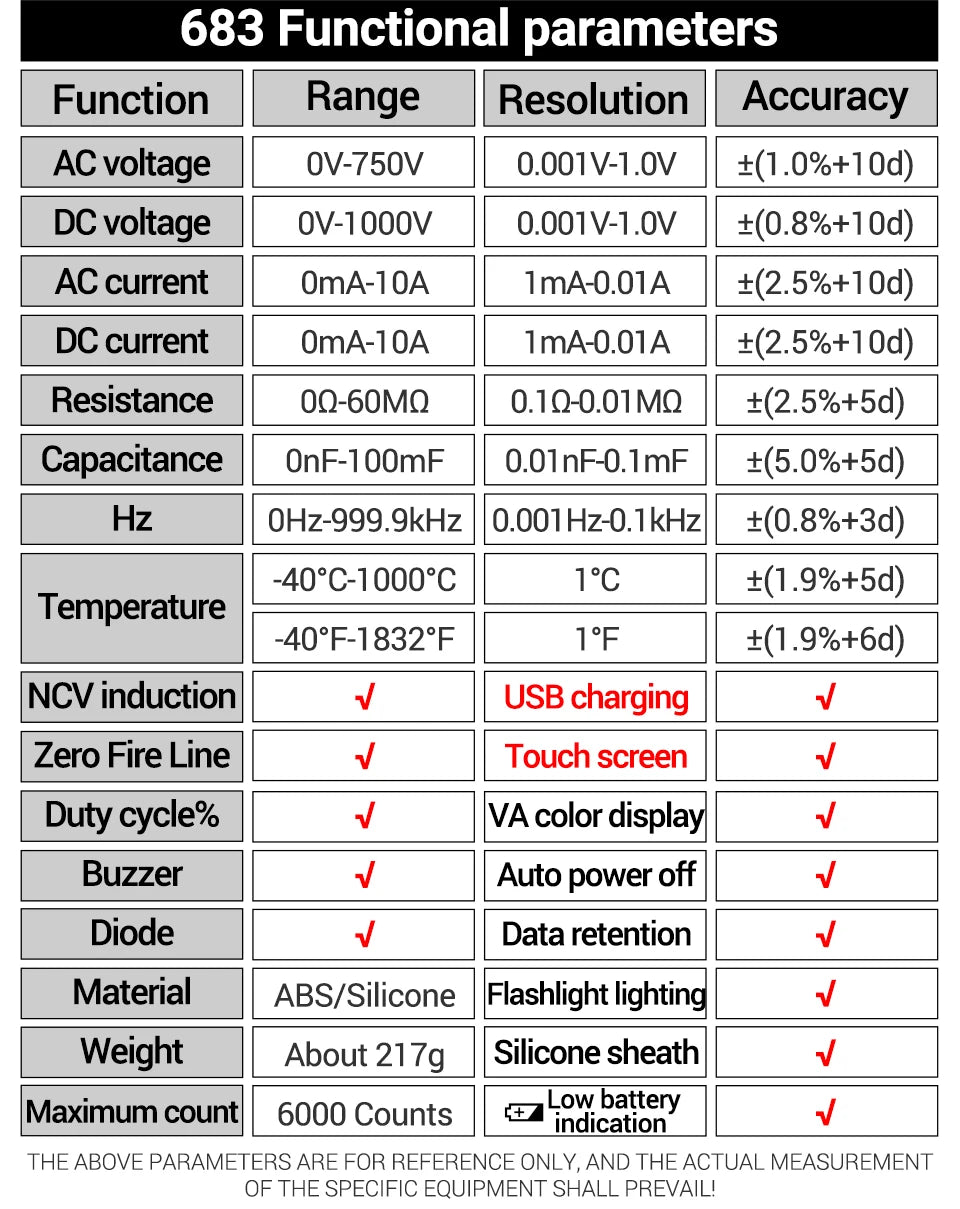

Specifications
DC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.5% readings+3digits) |
|
600V/1000V |
0.1V/1.0V |
+-(0.8% readings+10digits) |
AC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.8% readings+3digits) |
|
600V/750V |
0.1V/1.0V |
+-(1.0% readings+10digits) |

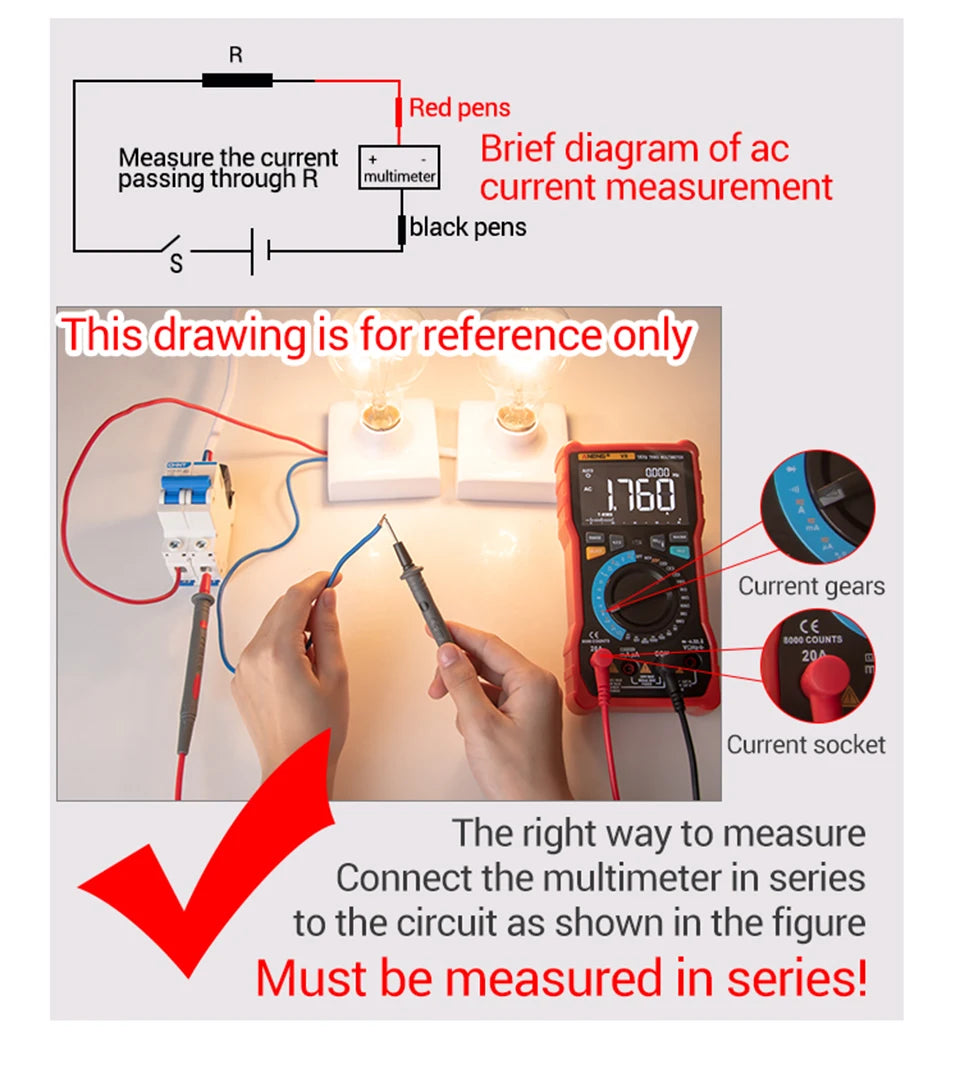

AC and AC Current
|
Measuring Range |
Resolution |
Accuracy |
|
6000mA |
1mA |
+-(1.0% readings+5digits ) |
|
10A |
0.01A |
+-(2.5% readings+10digits ) |

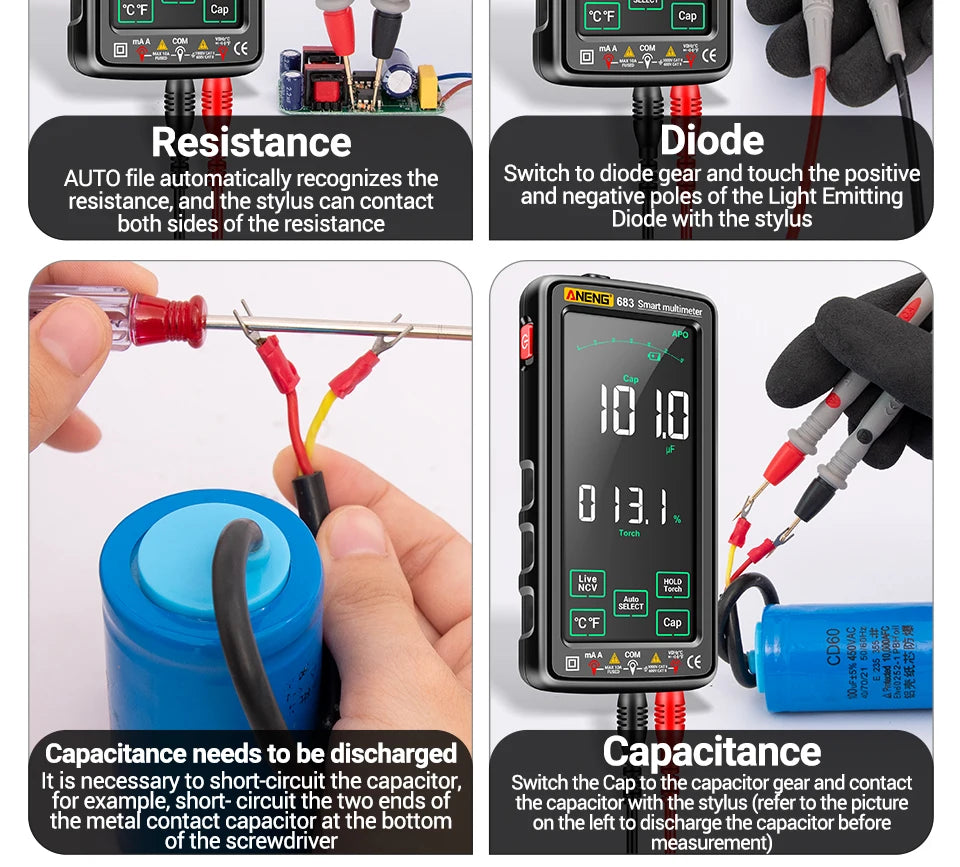

Resistance
|
Measuring Range |
Resolution |
Accuracy |
|
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% readings+3digits) |
|
6MΩ |
0.001MΩ |
+-(1.2% readings+3digits) |
|
60MΩ |
0.01MΩ |
+-(2.5% readings+5digits) |
Capacity
|
Measuring Range |
Resolution |
Accuracy |
|
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0%Readings+20 digits) |
|
60mF |
0.01mF |
+-(5.0%Readings+5 digits) |
|
100mF |
0.1mF |
for reference |
Frequency
|
Measuring Range |
Resolution |
Accuracy |
|
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% readings+3digits) |
|
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% readings+3digits) |
Temperature
|
Measuring Range |
Resolution |
Accuracy |
|
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
|
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
|
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
|
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
|
Diode Test |
Yes |
Circuit on/off Test |
Yes |
|
Data Hold |
Yes |
Automatic power off |
Yes |
|

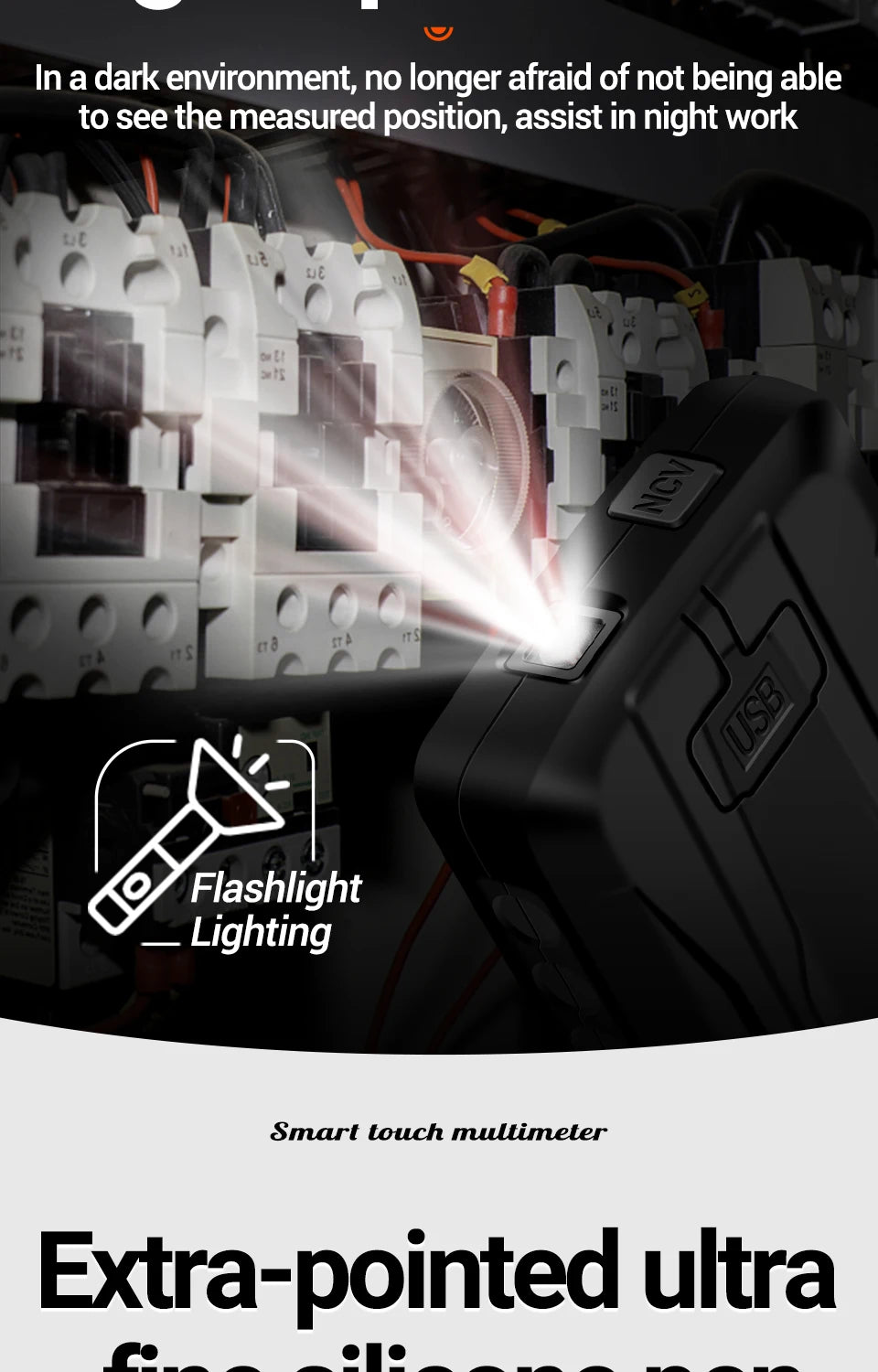

Torch |
Yes |

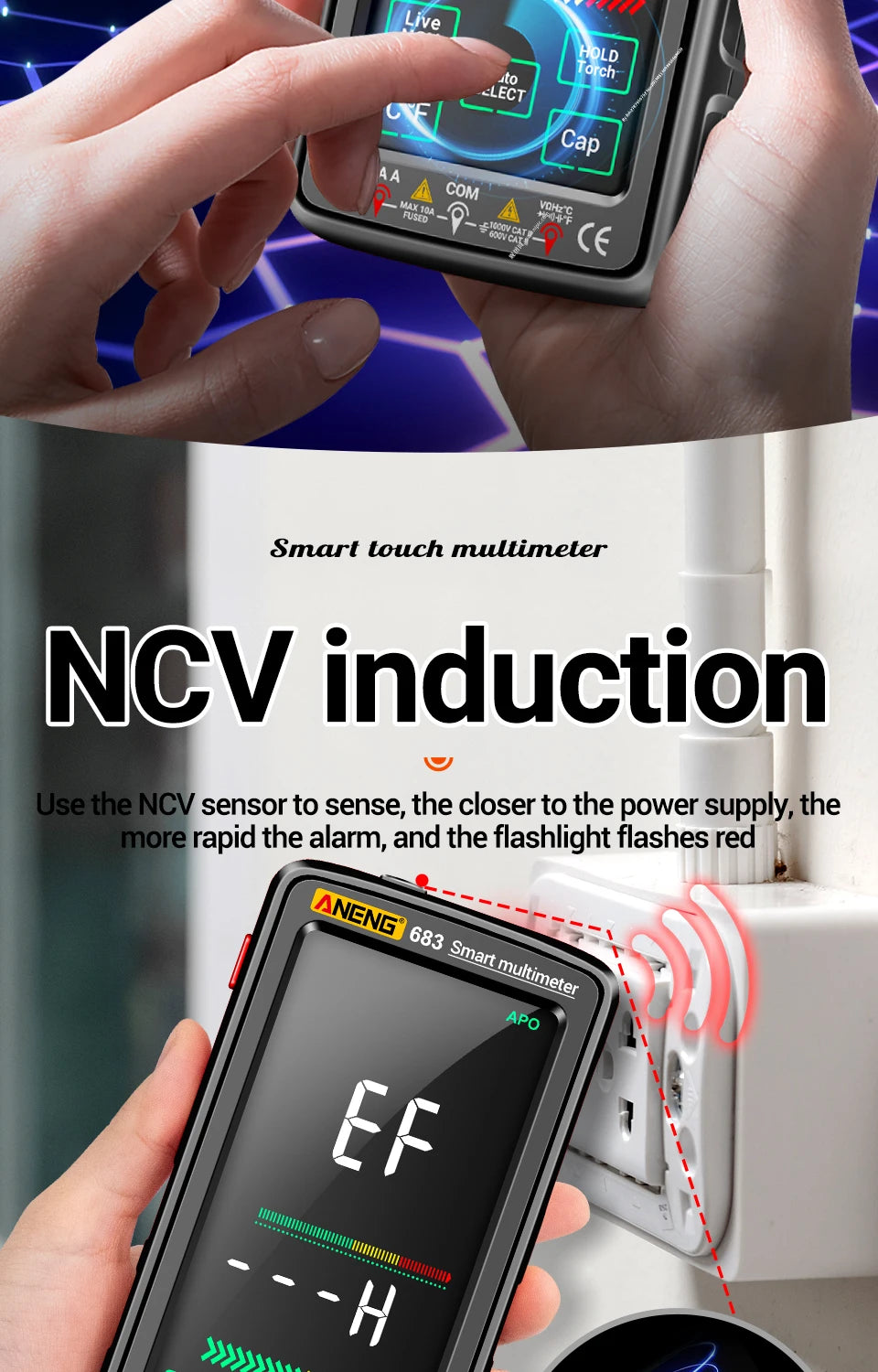

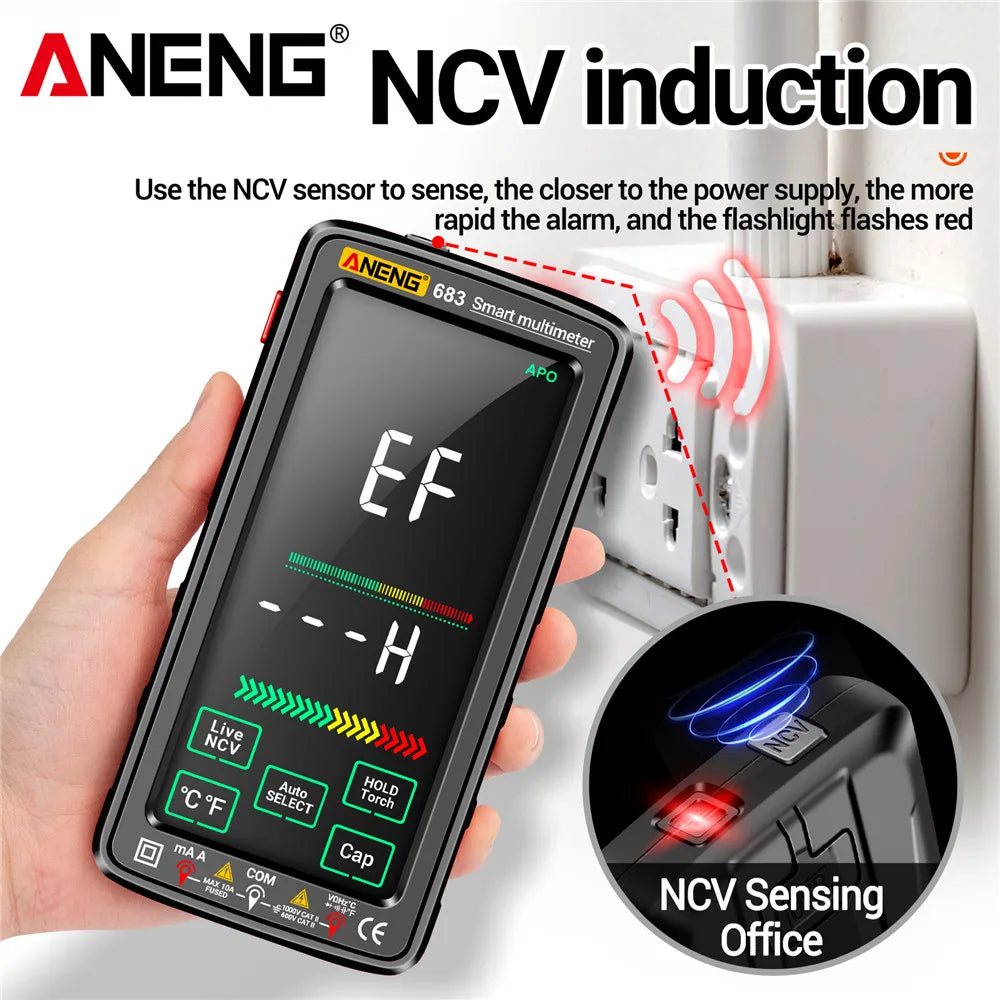

NCV Test |
Yes |
|
Buzzer |
Yes |

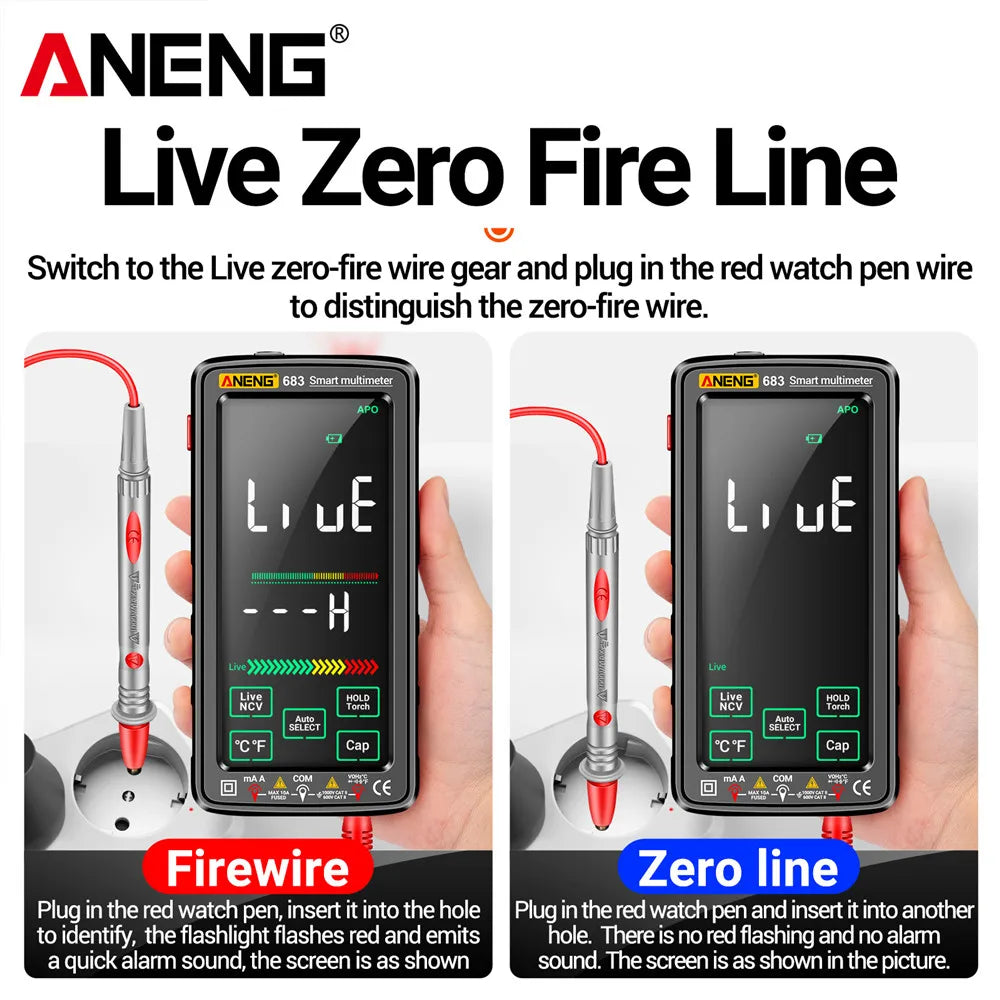

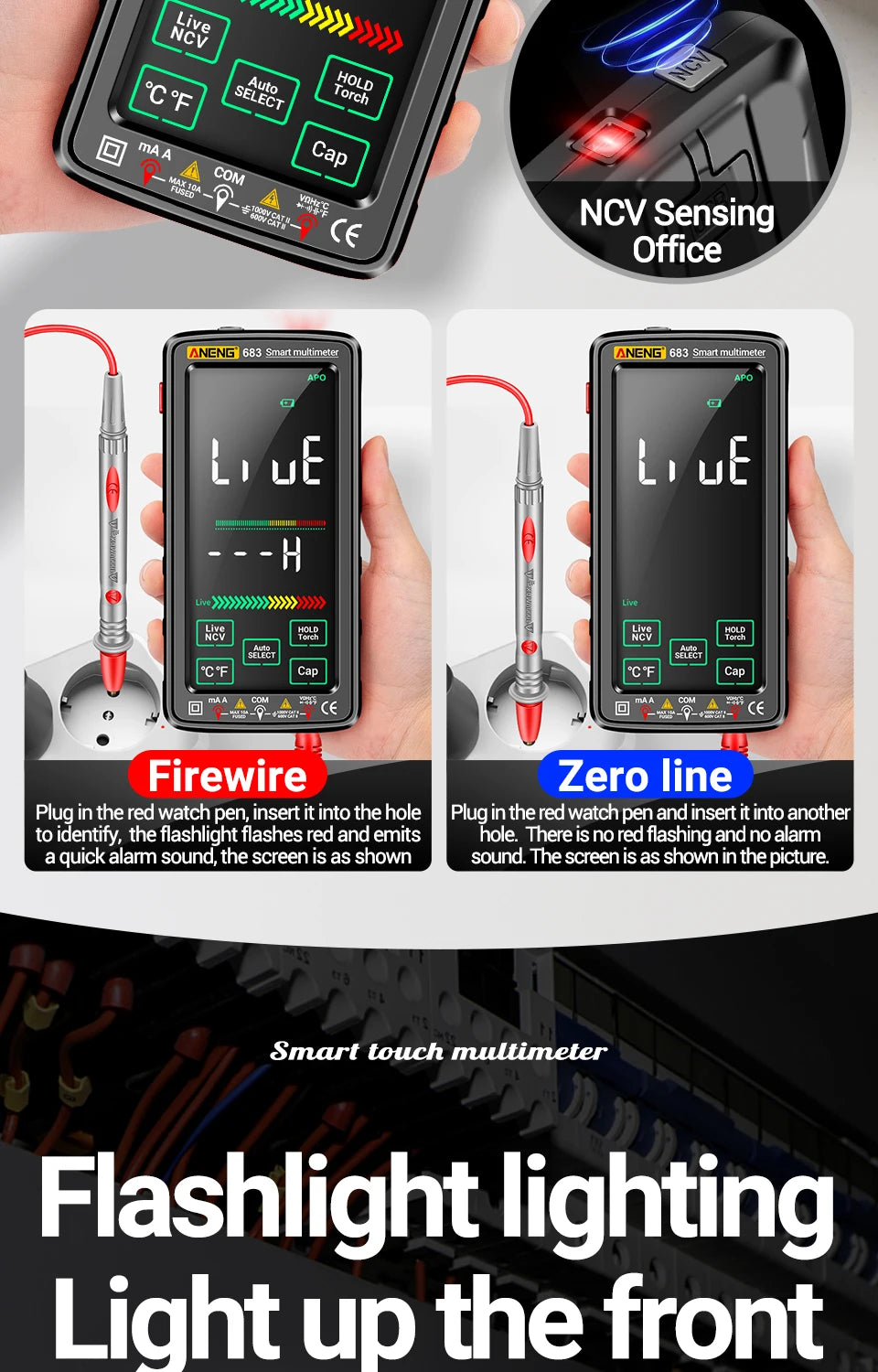

Firing line Test |
Yes |

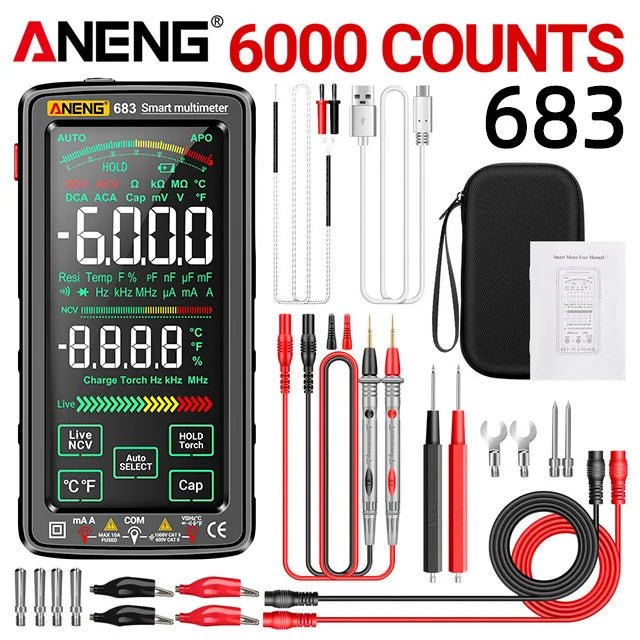

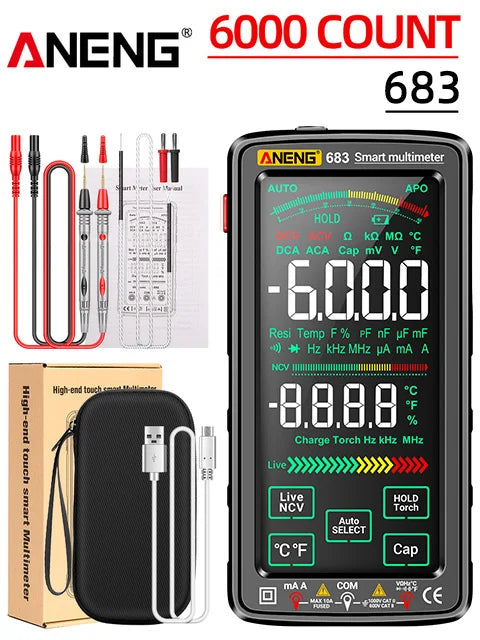

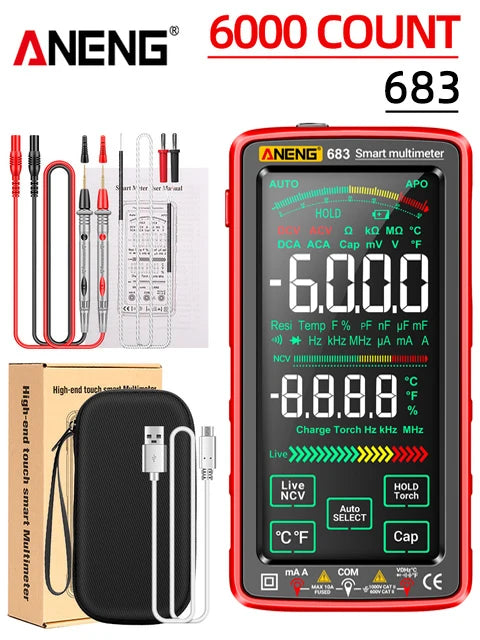

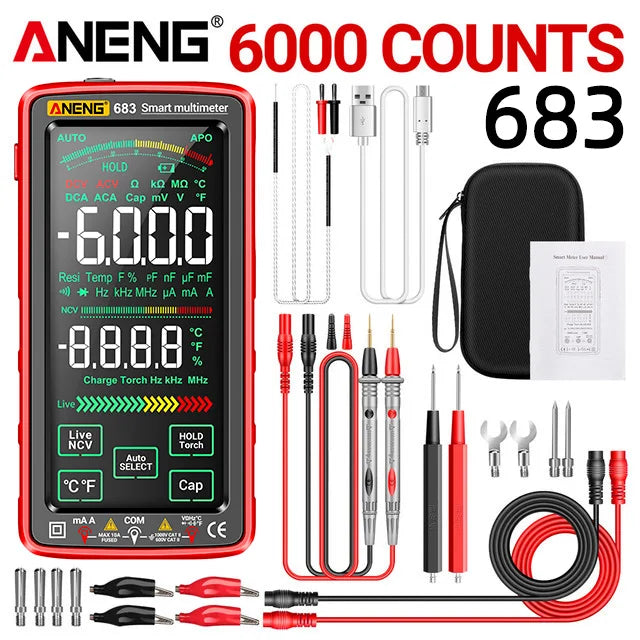

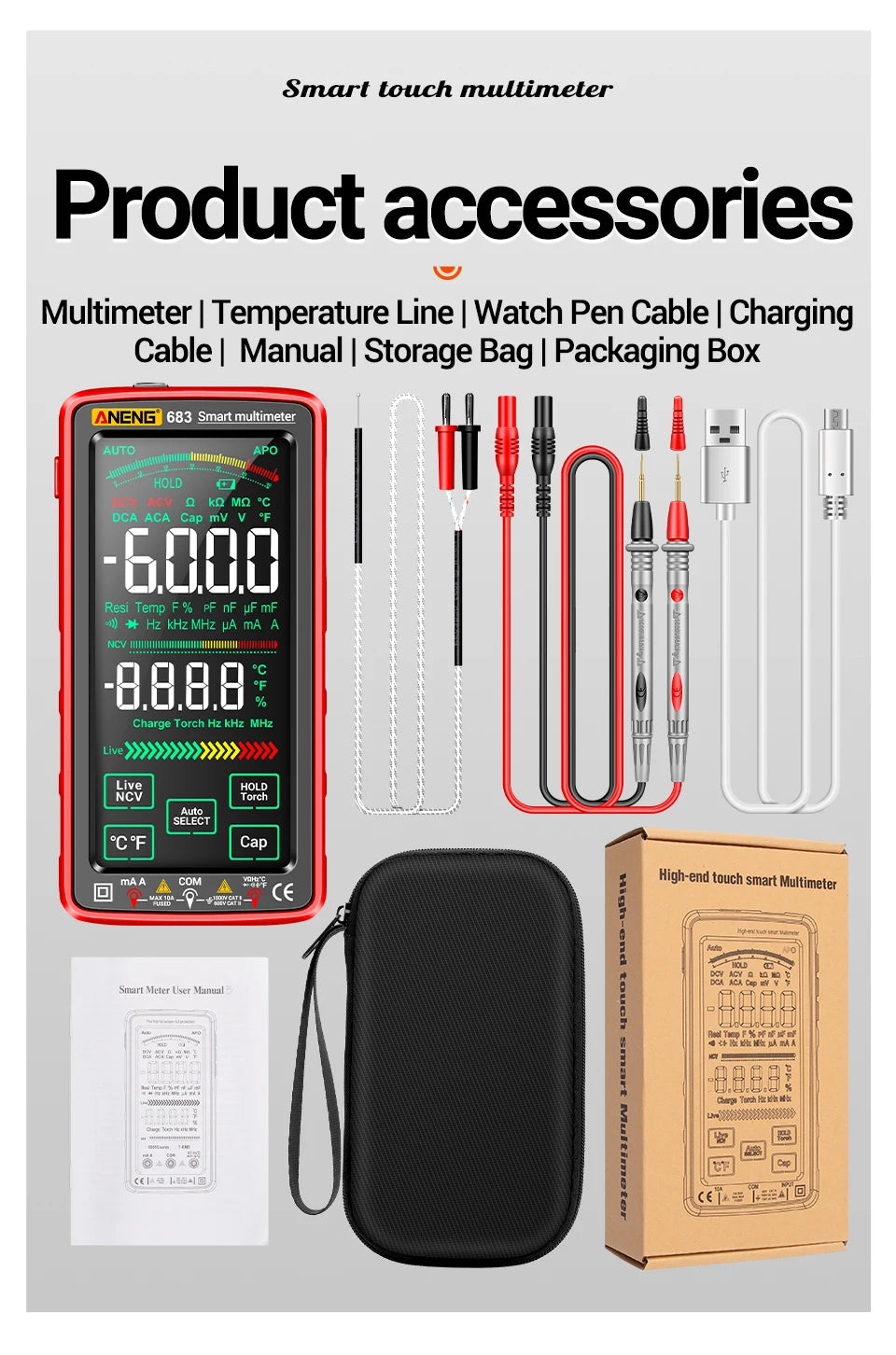

Package Included:
As the picture showed
