SPECIFICATIONS

Connection Method: WIRED

Camera Sensor type: CMOS

Answering Mode: Hands-free

Display Size: 7"

Display Screen Type: color

Zone Input: None

Kit Configuration: One to One video door phone

Access Control: None

Type: Intercom System

Waterproof: Yes

Smart home platform: NONE

IP Camera Interface: No

Smart Home Interface: No

Installation: Wall Mounting

Resolution: 720p

Connection Type: WIRED

Certification: CE

Certification: FCC

Plug Type: EU plug

Plug Type: US plug

Plug Type: AU Plug

Model Number: M4-V7022A

Sensor Size(Inch): 1/4

Camera: color

Power: 220v

Viewing Angle (°): 110

Doorbell: Yes

Technology: DIGITAL

materiaal: ABS/metal

Grootte: 195mm(L) x 132mm(W) x 18mm(H)

vermogen: DC 15V 1500mA

Screen: 7" colour TFT-LCD screen

Outdoor Camera Dimension: 195mm(L) x 132mm(W) x 18mm(H)

Indoor Camera Dimension: 50mm*x 27mm*125mm

Installation: Wall mounted

Camera Resolution: 700TVL

Distance: Support up to 100 meters

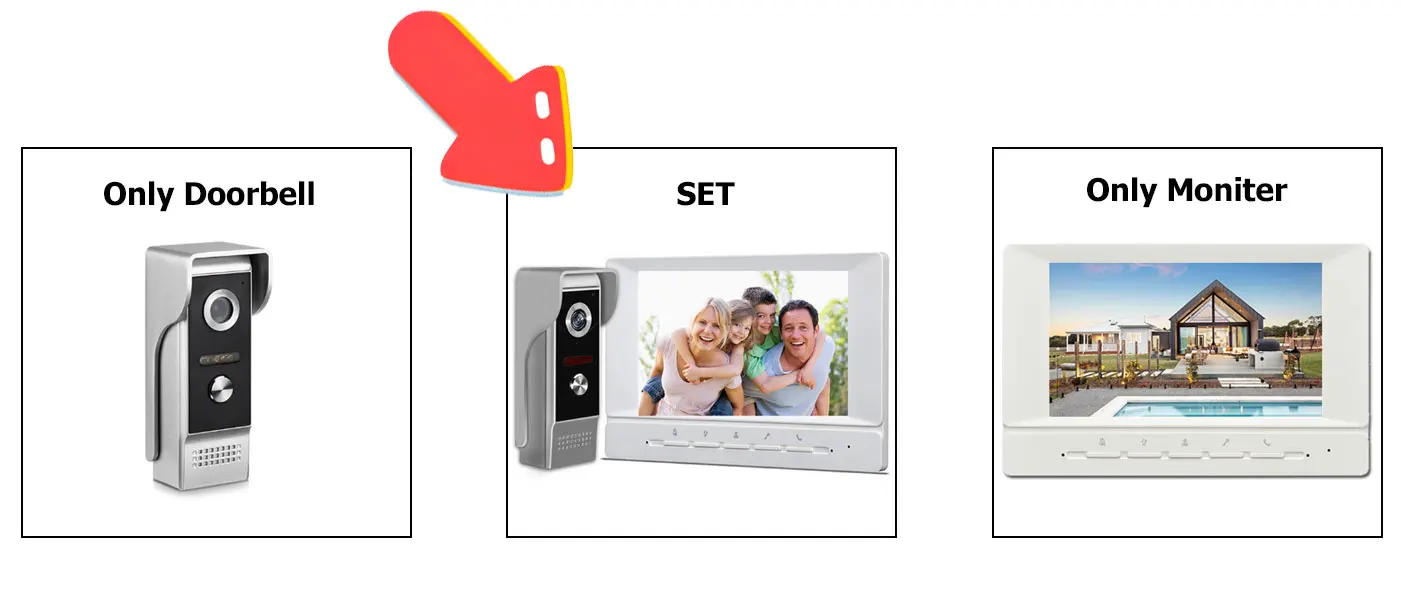

There are multiple options when purchasing. If you buy a separate doorbell or screen, it cannot be used normally.

You need to buy a set to use it normally. Please choose the option you need!

Product Details:

.

• There is a 4-wire system connection.
• Use a 4-core cable to connect the outdoor camera and monitor.
• The maximum distance can reach 100 meters.
• Different lengths and cables of different diameters are used.
• Please check the following to select the corresponding cable.

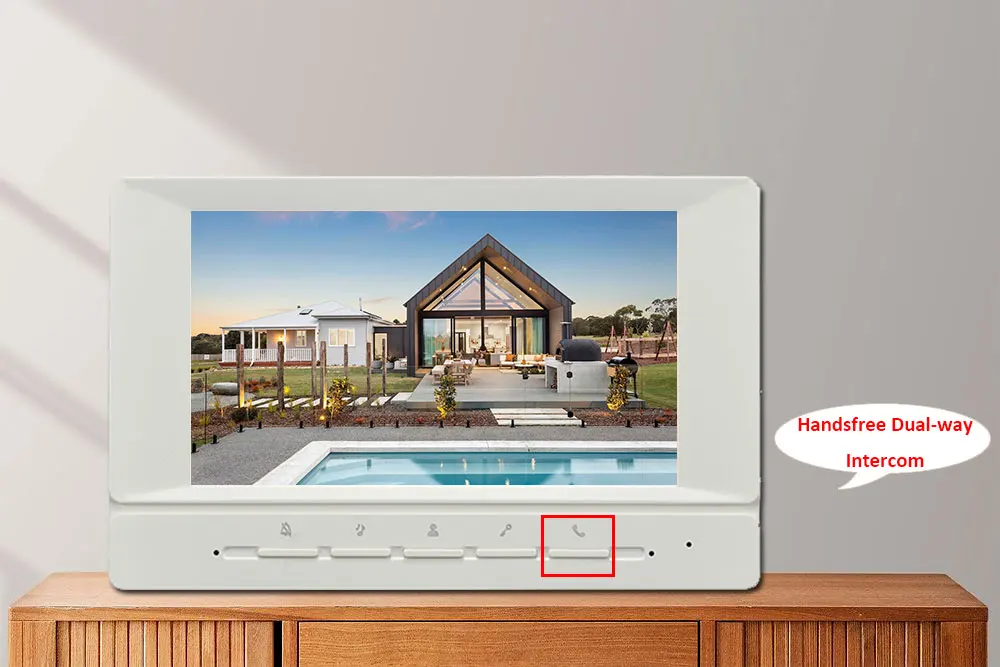

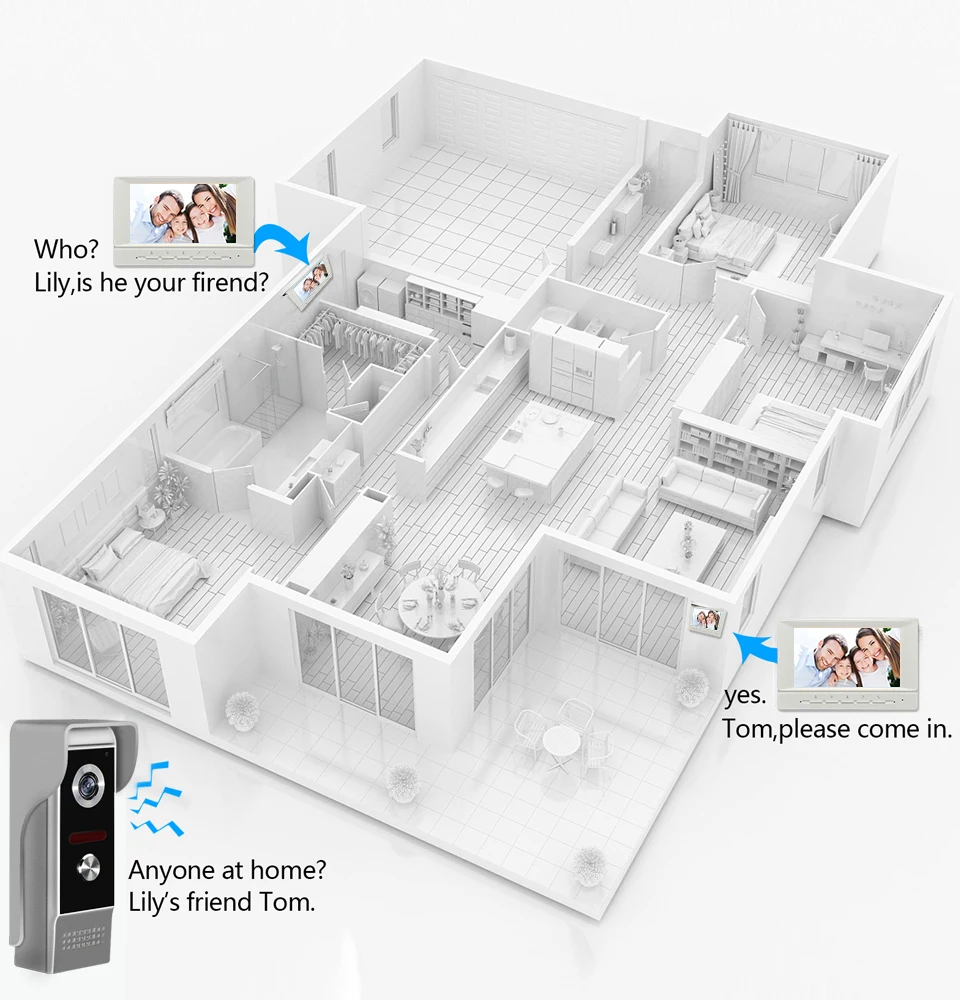

Handsfree Dual-way Intercom and Indoor Monitoring

.

When a visitor ring the bell, the monitor will be activated and show the image outside.

Press the answer button, then you can talk outside, press the answer button again to turn it off.

If you do not press the button after the conversation is finished or if no one answers the call,

the monitor will turn off automatically after the 60s.

Multiple Ringtones-Switch freely

The 25 polyphonic ringtones can be switched freely, which is elegant and beautiful.

The ringtone and volume can be adjusted to meet your original needs.

No longer have to worry about not being able to hear the sound or hearing the sound too loud.

Unlock your door by using an indoor monitor convenient

This video intercom can connect to the electric lock.

You can open the door with both the indoor monitor and the outdoor camera.

Very convenient! ( Note: locks are NOT included in the package, need to buy extra)

I am using the 4-core cable to connect the outdoor unit to the indoor unit.
I am using the 5-core cable to connect the indoor unit to the next indoor unit.

(The NO type lock can be connected to the camera directly.

But the magnetic lock, Strike lock, and bolt lock need to be connected to an extra DC12V power supply. ) Outdoor Doorbell:

Camera sensor 1/4" CMOS Lens Angle 110 degree Night Vision IR light Electronic lock support Power Consumption 200mA Max.
Material aluminum alloy panel Waterproof IP65 Operation Temp. -40 deg +50 deg Installation Wall mounted

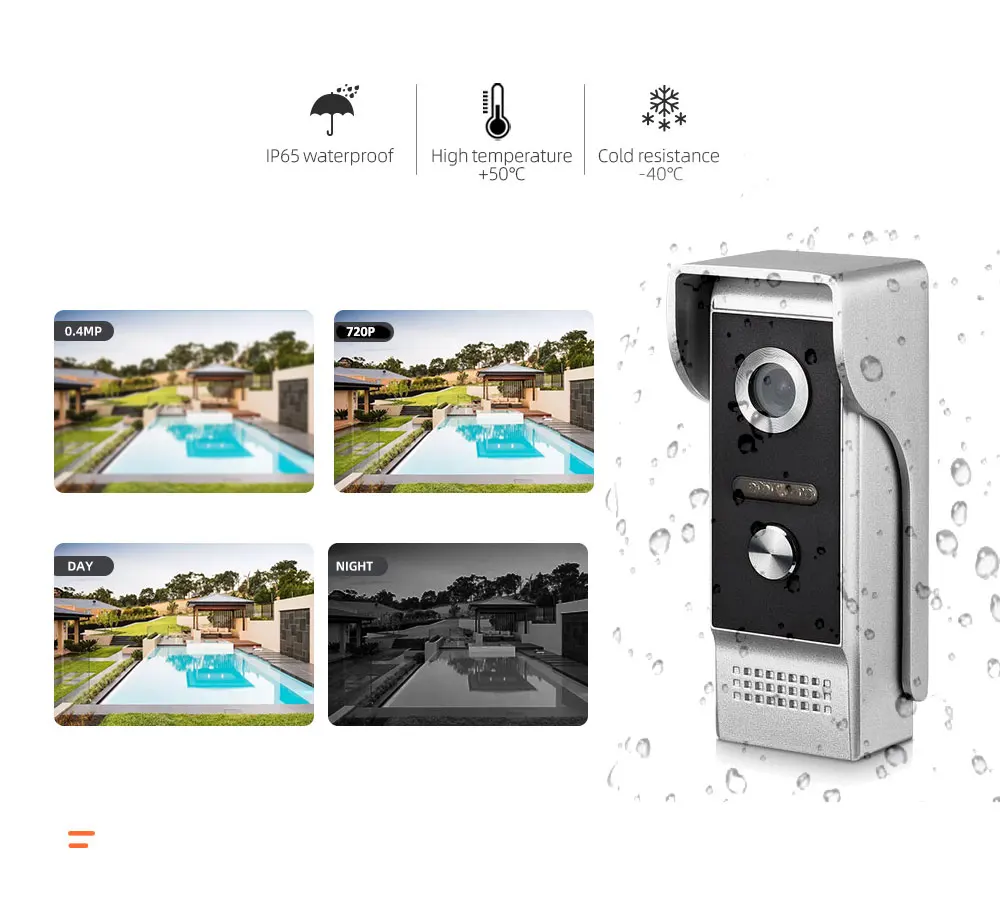

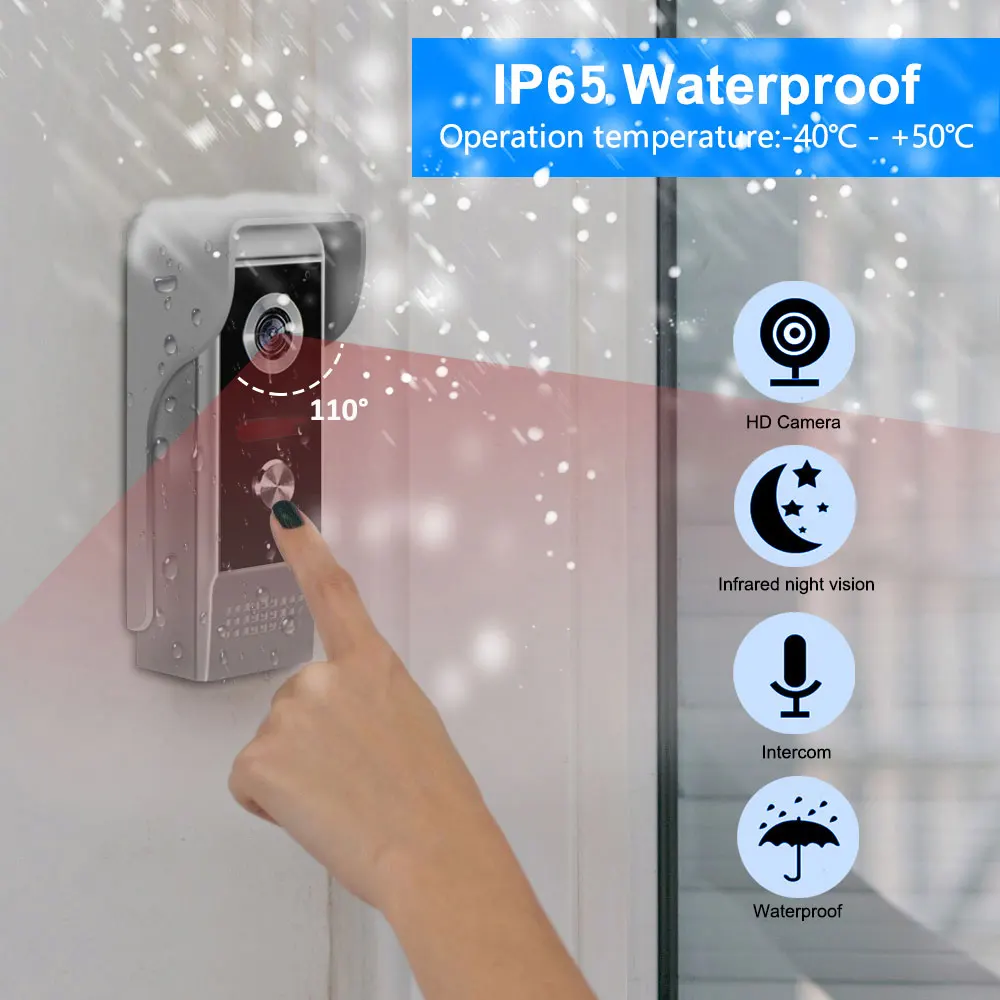

IP65 Waterproof, Anti-thunderstorm Design

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak.

It Also Can Works Well Even In Bad Weather.

720P/1.0MP High Resolution

1.0MP High Resolution, It's See Sharper And More Details Than 1200TVL/800TVL.

IR (infrared) LED for Night Version

.The LED on the outdoor doorbell will light on automatically so that you can see clearly visitors even in the darkness of evening, Make sure your family is safe.



Click to view>>Electronic lock

.
