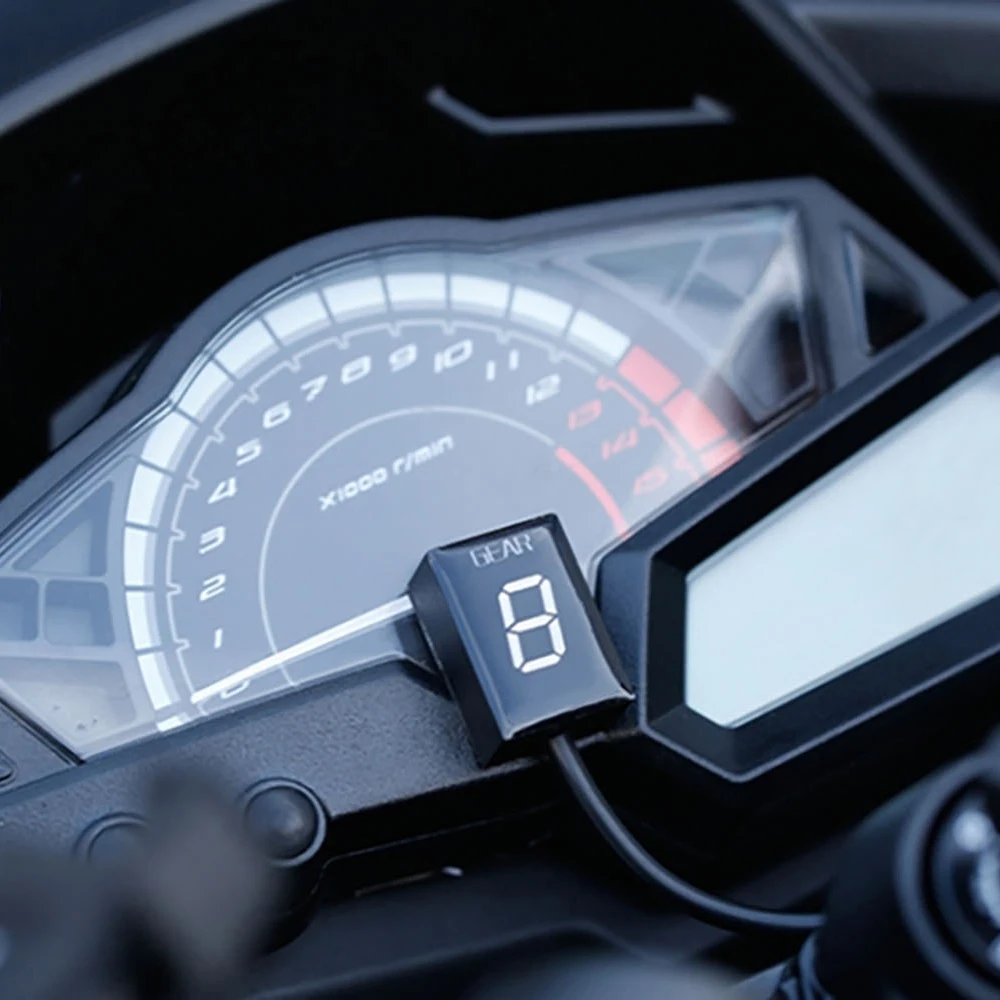

Honda CBR 600 RR CB500X CBR600RR CBR1000RR CB600F Hornet CB650F CBR650F GL1800 Motorcycle Gear Indicator Speed Display Meter

Honda CBR 600 RR CB500X CBR600RR CBR1000RR CB600F Hornet CB650F CBR650F GL1800 Motorcycle Gear Indicator

Specifications

Item Name: Speed Gear Display Indicator

Condition: 100% Brand New

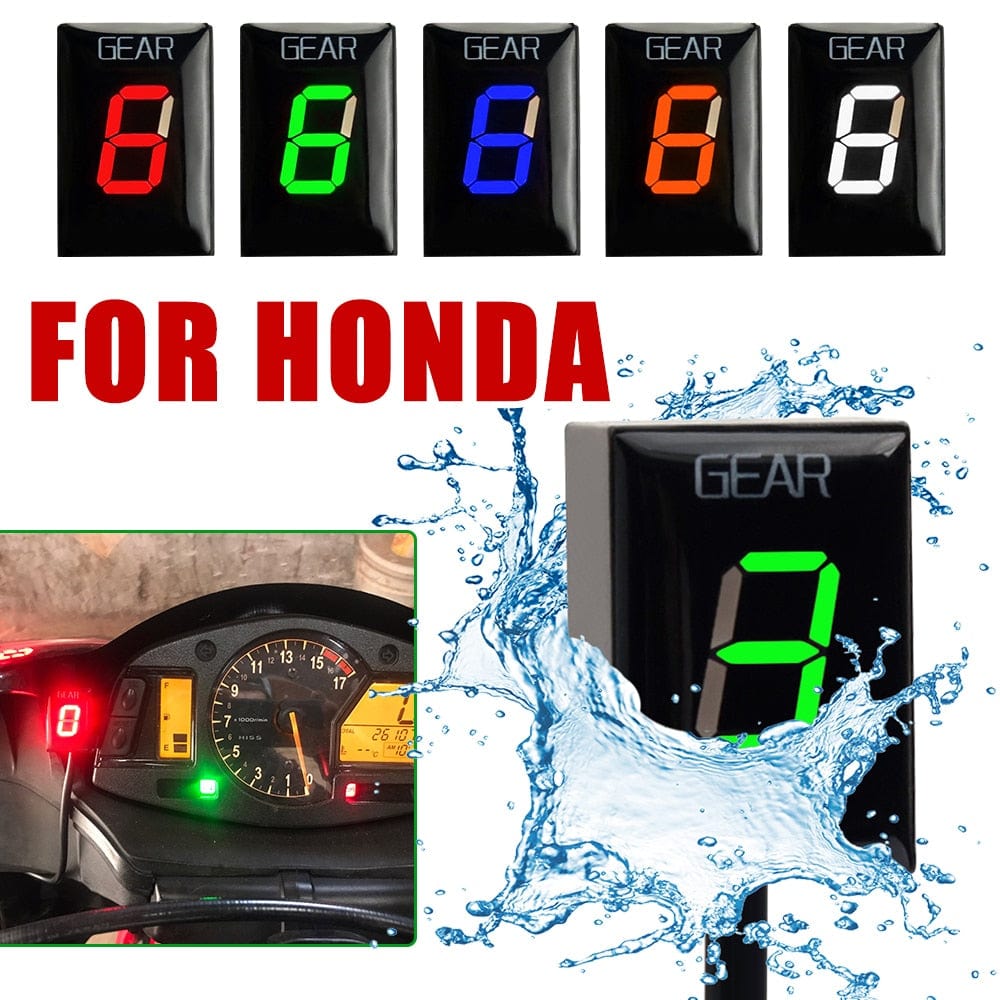

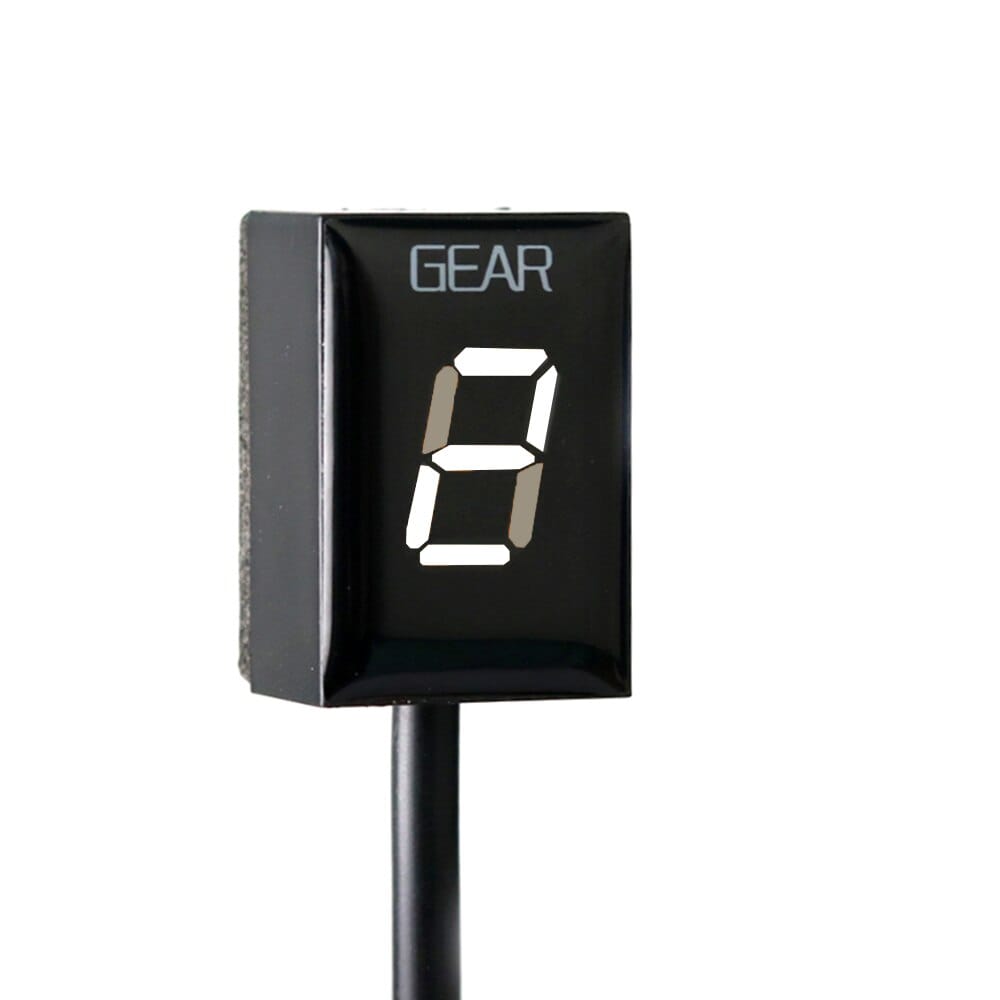

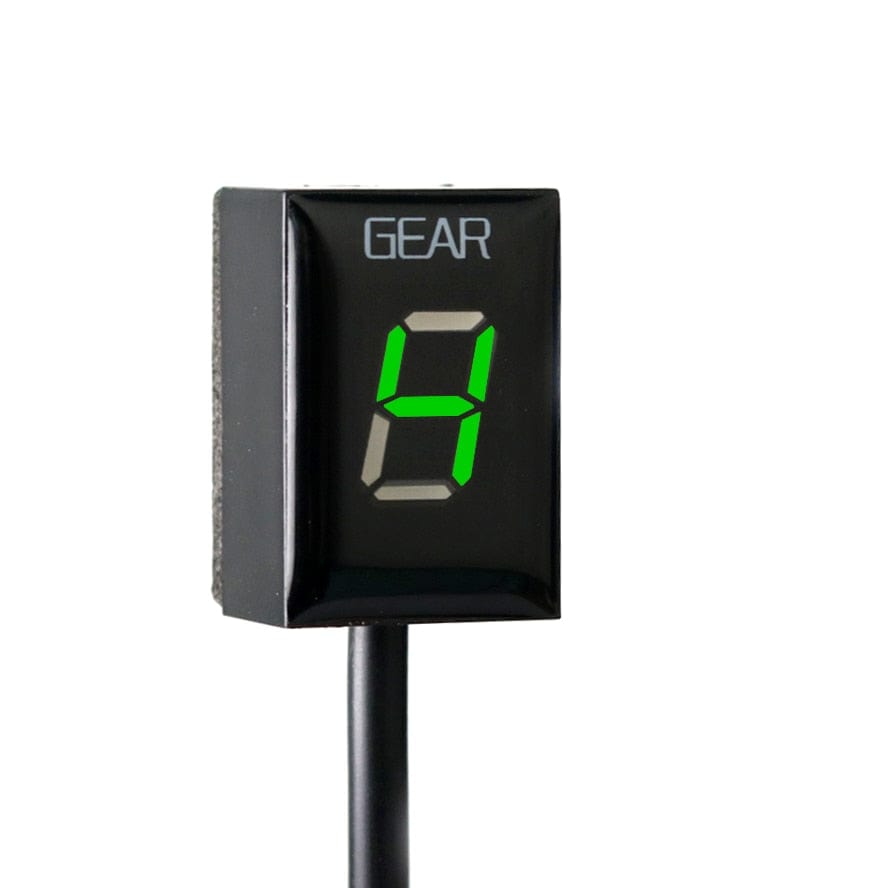

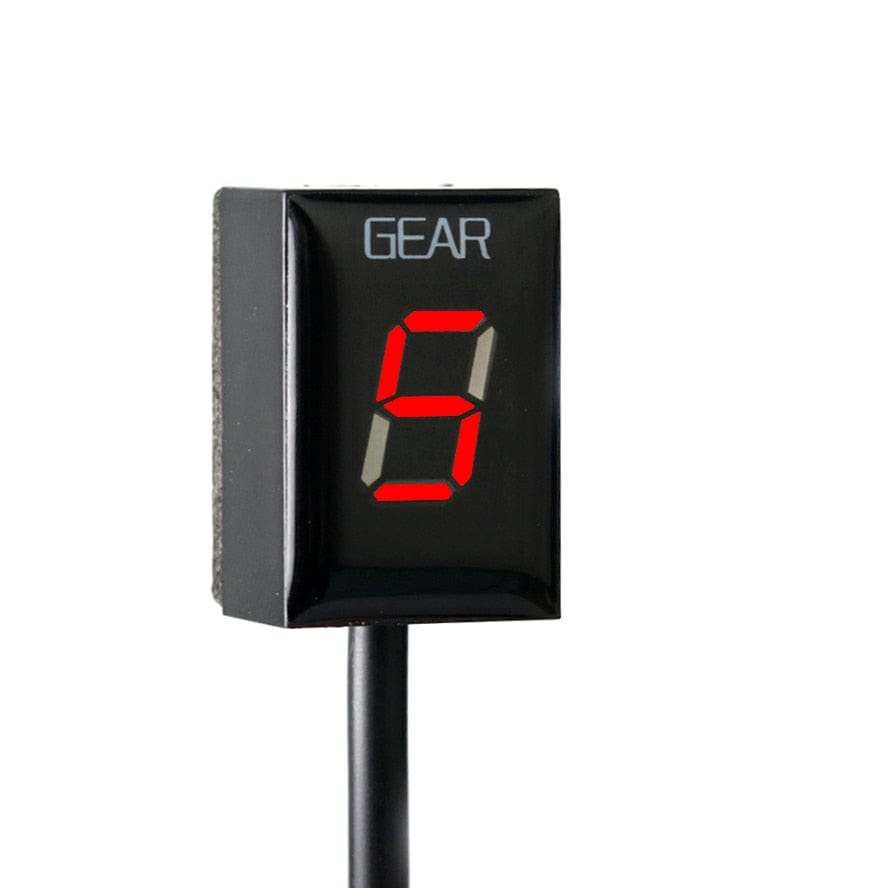

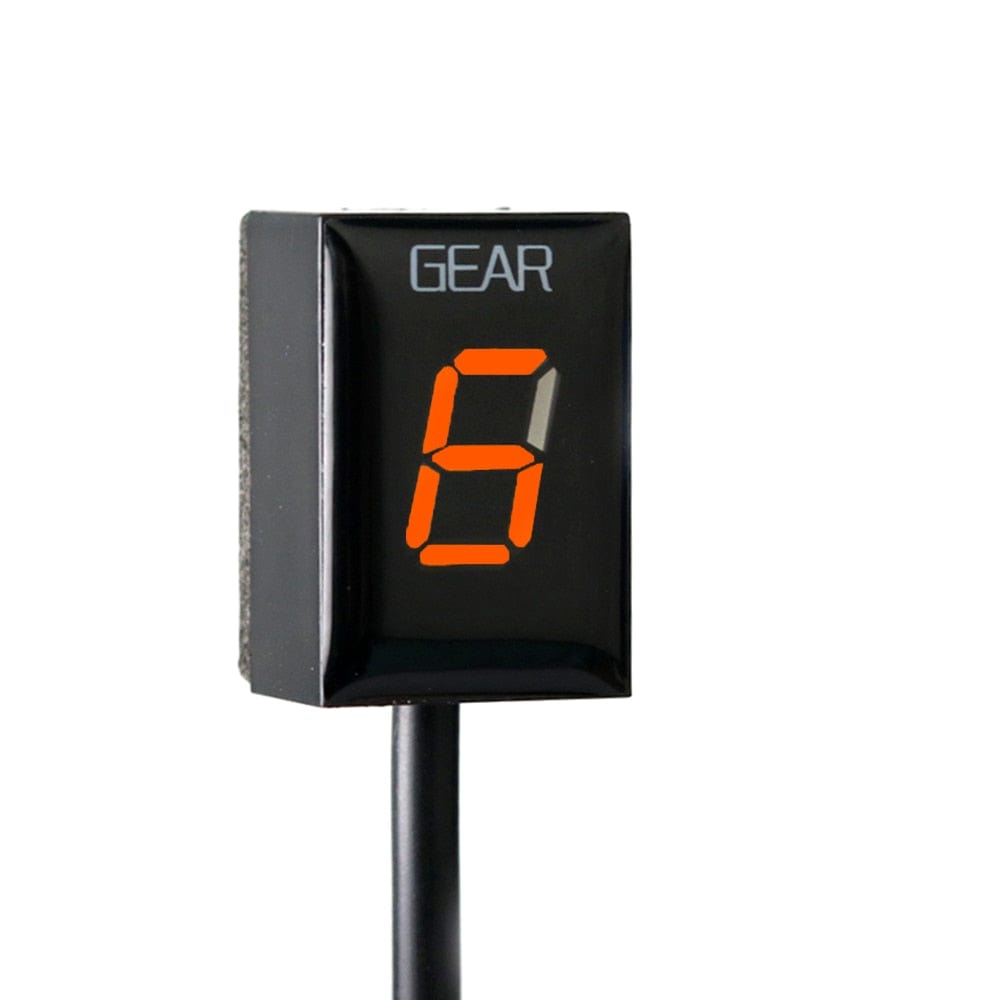

Color of Light Source: Red/Blue/green/white/orange

Size: 4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Special Features: Gear Indicator

Item Width: 0inch

Item Weight: 0.1kg

Item Length: 0inch

Item Height: 0inch

Item Diameter: 0inch

Installation

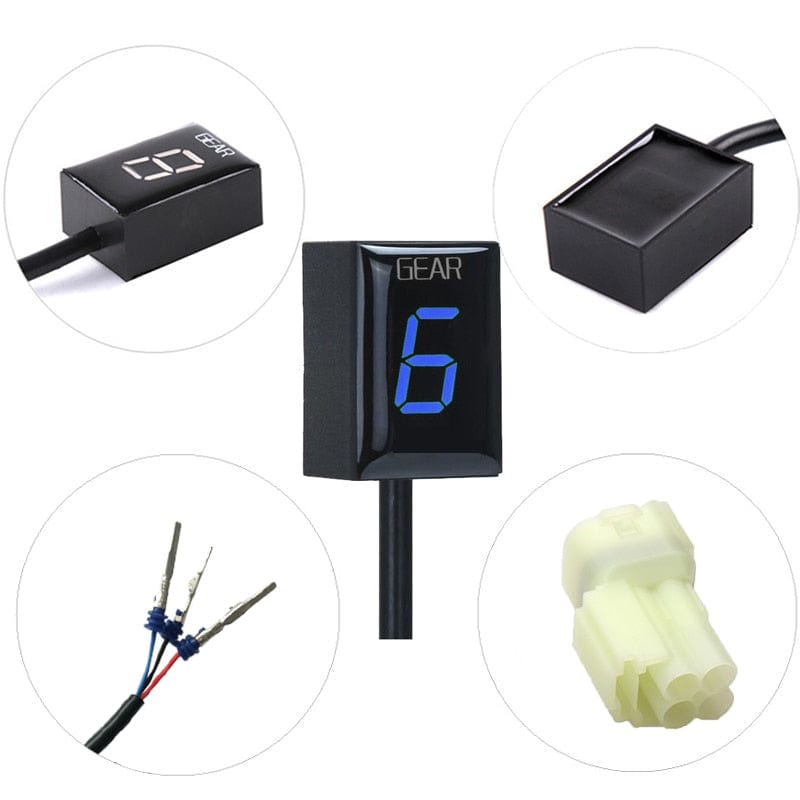

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Steps

You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

The screen displays L, indicating that learning is started.

The screen displays L, select first gear, release the clutch, and keep the speed higher than the idle speed.

The display will flash "1". Continue to maintain the first gear, accelerate. When the device is learning a gear, the display flashes faster.

When the display shows "2", select the second gear and continue to accelerate.

When the display shows "3", select the third gear and continue to accelerate.

Repeat this process until all gears are thought (5 or 6).

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

Feature

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

Display can be mounted anywhere

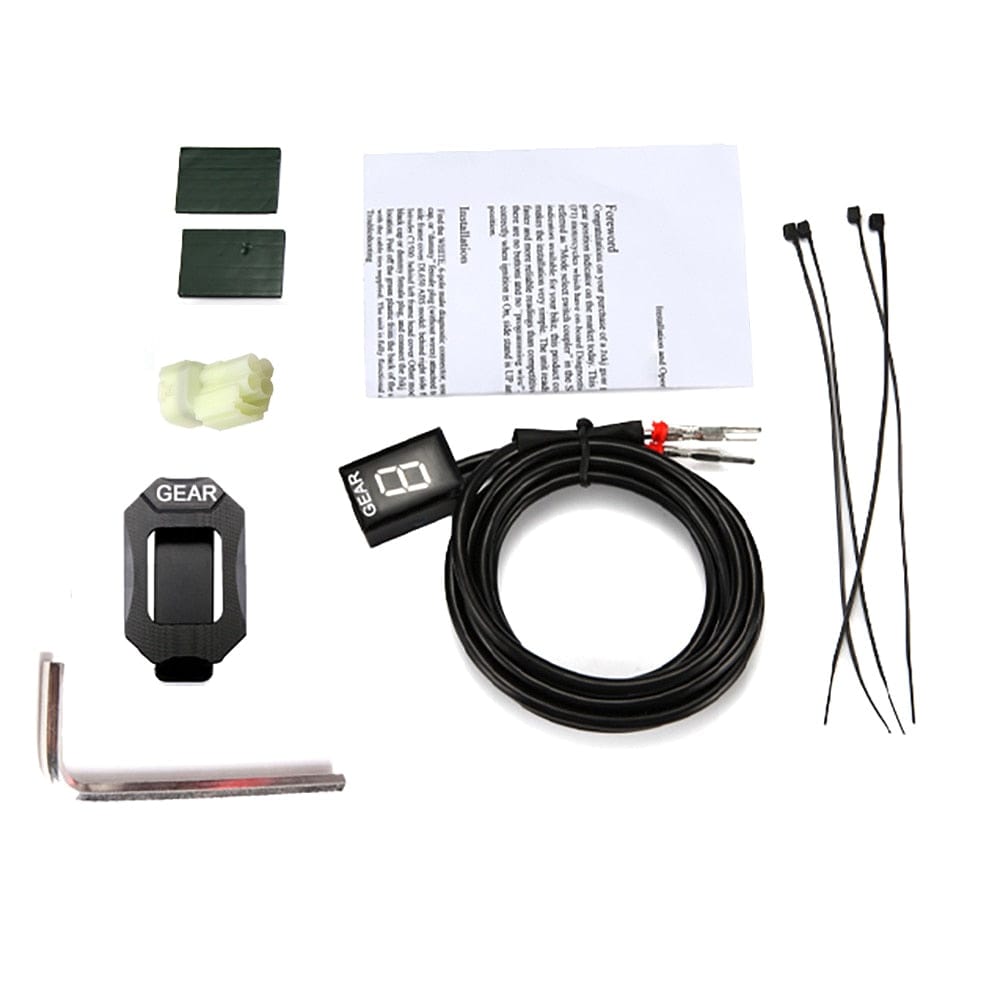

Package List

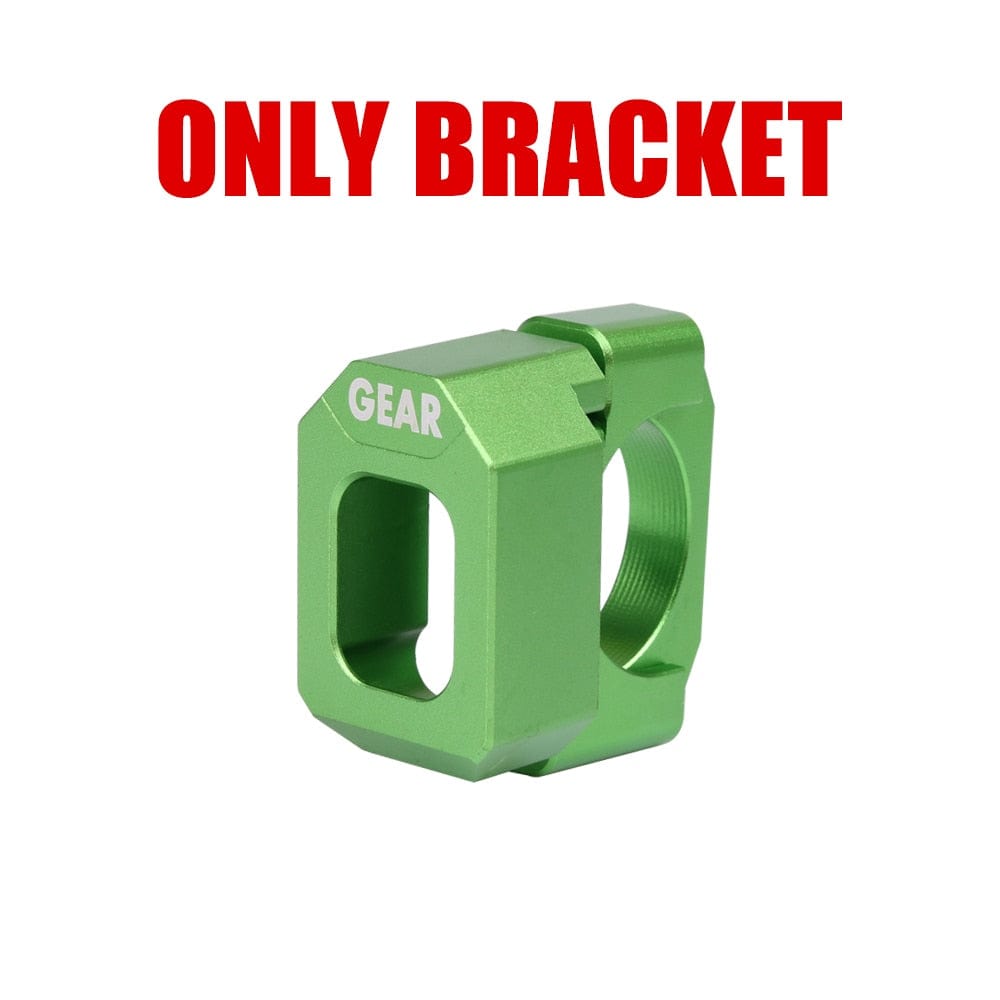

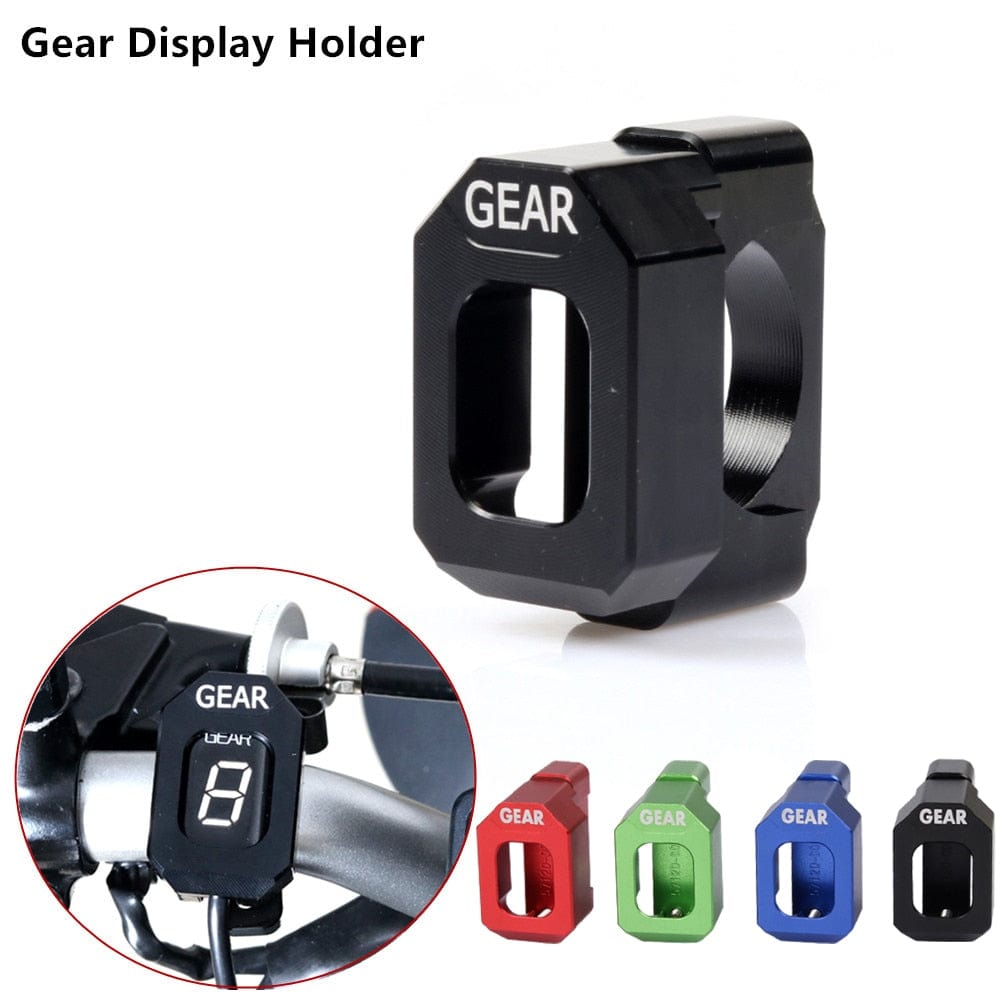

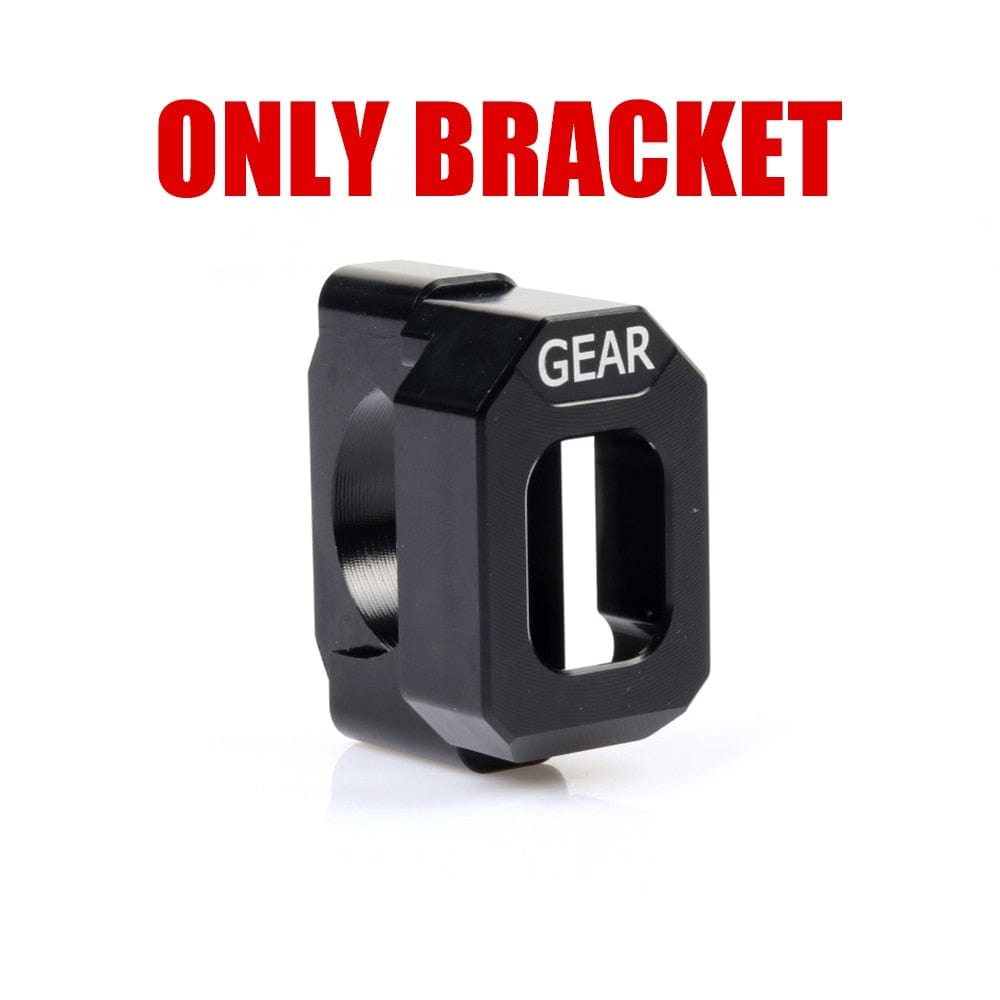

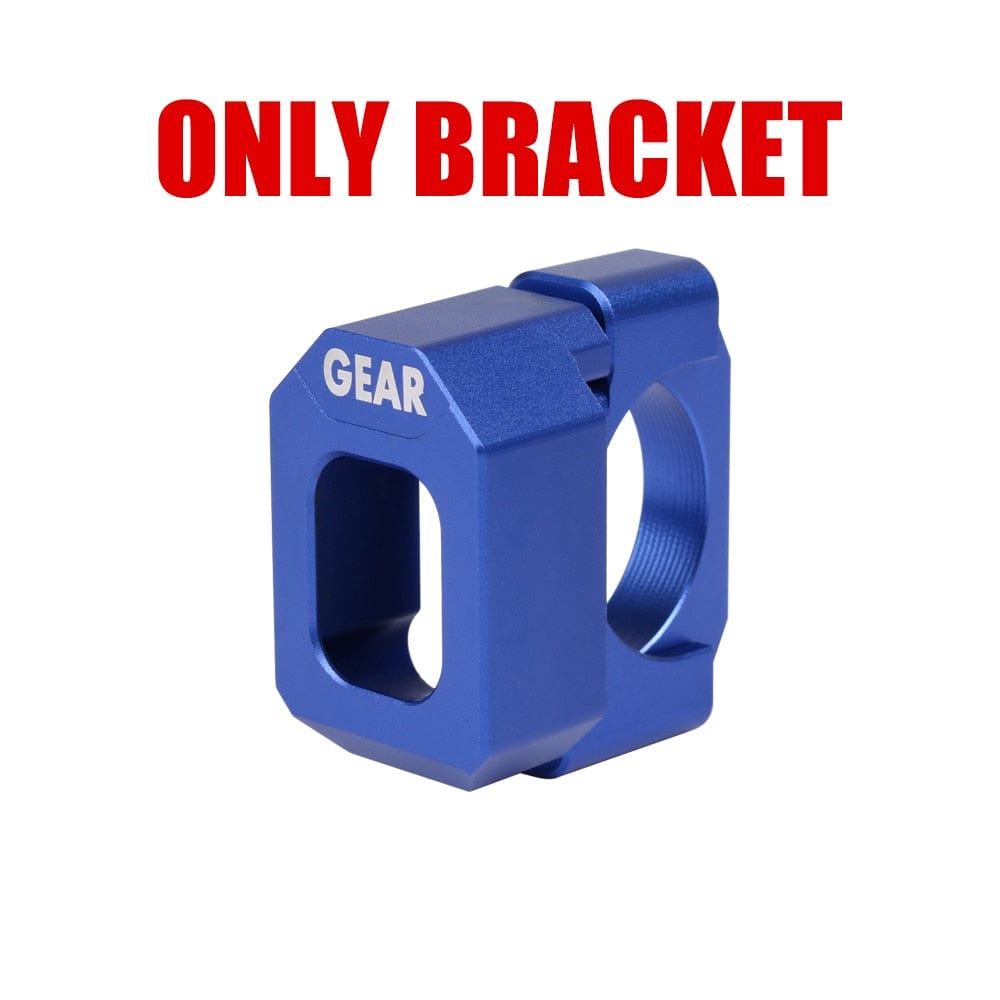

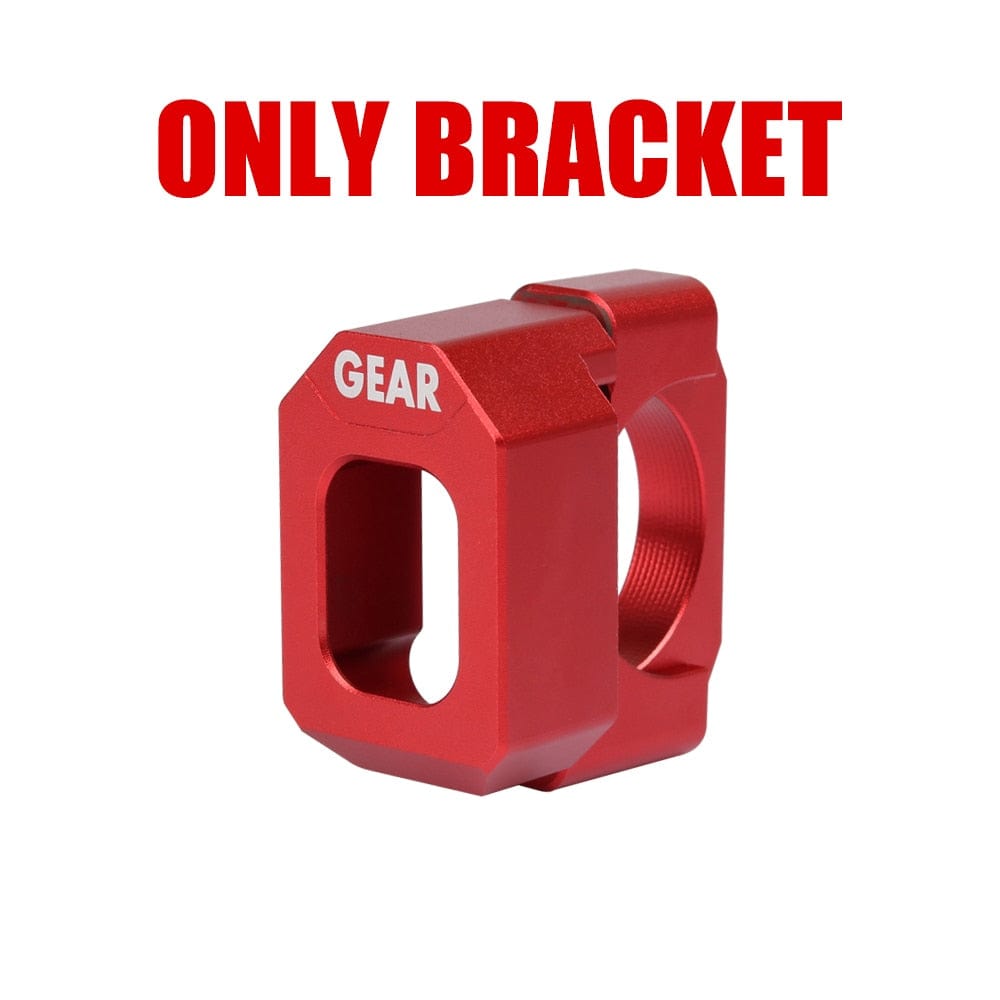

1 x Motorcycle Speed Gear Display/Bracket

Rest

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.

Fitment

For Honda CB250F(with digital trip/odo) 2015
For Honda CB300F 2015-2018
For Honda CB400SF 2008-2017
For Honda CB400X 2013-2016
For Honda CB400F 2013-2015
For Honda CB500F 2013-2018
For Honda CB500X 2013-2018
For Honda CB600F Hornet 2007-2013
For Honda CB650F 2014-2018
For Honda CB1000R 2008-2018
For Handa CBR1000RR 2004-2018
For Honda CB1100 (non-ABS) 2010-2013
For Honda CB1100 (ABS) 2010-2013
For Honda CB1300 S/F 2003-2015
For Honda CBF600 2008-2012
For Honda CBF1000 F/FA 2006-2009
For Honda CBR250 2015
For Honda CBR300R 2015-2018
For Honda CBR400R 2013-2015
For Honda CBR500R 2013-2018
For Honda CBR600F 2011-2013
For Honda CBR600RR 2003-2018
For Honda CBR650F 2014-2018
For Honda CMX300 Rebel 2017
For Honda CMX500 2017
For Honda CRF250L/M All Years
For Honda Crossrunner All Years
For Honda CTX700 (w/o DTC) 2014-2017
For Honda Fury 2010-2018
For Honda Interstate 2010-2016
For Honda NC400X 2013-2015
For Honda NC700 S/X 2012-2017
For Honda NC750 S/X 2014-2018
For Honda NT700V Deauville 2006-2015
For Honda Sabre 2010-2012
For Honda Stateline 2010-2017
For Honda VFR800 interceptor 2006-2013
For Honda VFR800X All Years
For Honda VT400 (FI model) 2009-2014
For Honda VT750C (FI model) 2007-2017
For Honda VT750S (FI model) 2007-2009
For Honda VT1300 (All) 2010-2016
For Honda VTX1800 2005-2012
For Honda XL125V Varadero 2007-2014
For Honda XL700V Transalp (non-ABS) 2008-2014
For Honda XL700V Transalp (ABS) 2008-2014
For Honda XL1000V Varadero 2003-2012
For Honda TRX ATVs (FI model) All Years
For Honda CB300R 2018-2019
For Honda GL1800 2005-2017
For Honda CTX1300 2014-2015
For Honda ST1300 2008-2015
For Honda VTR250 2009-2014
