SPECIFICATIONS
Working Temperature: -25 to 85 Celsius Degree
Size: 53mm
Repeatability: <0.5dB

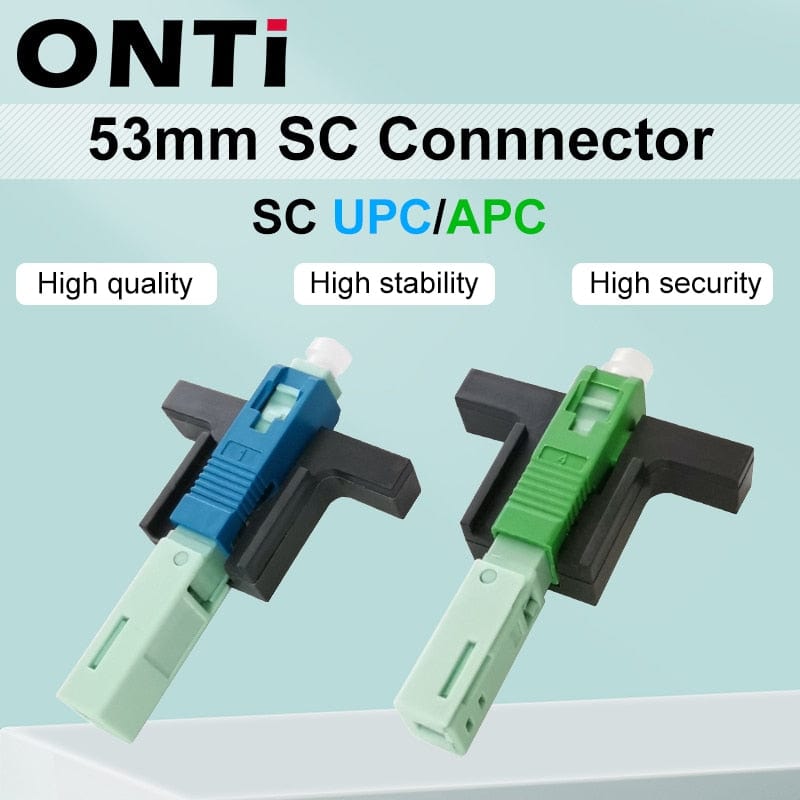

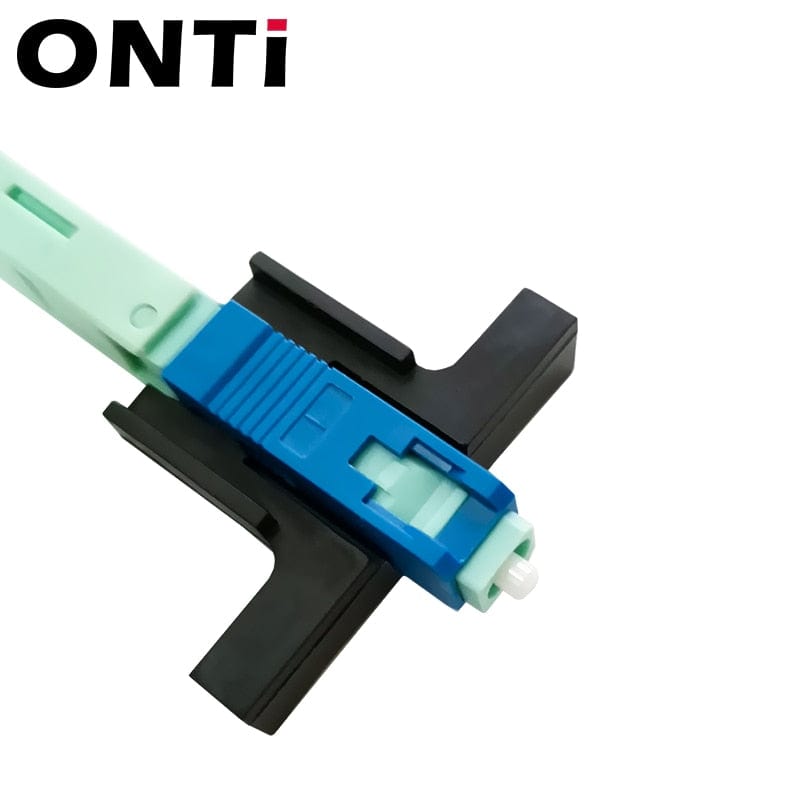

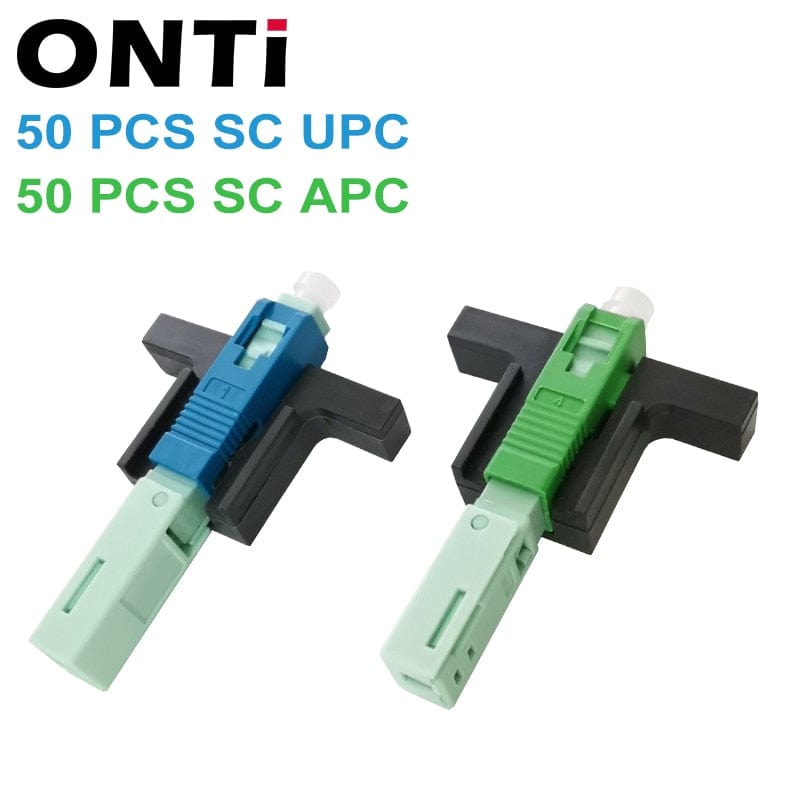

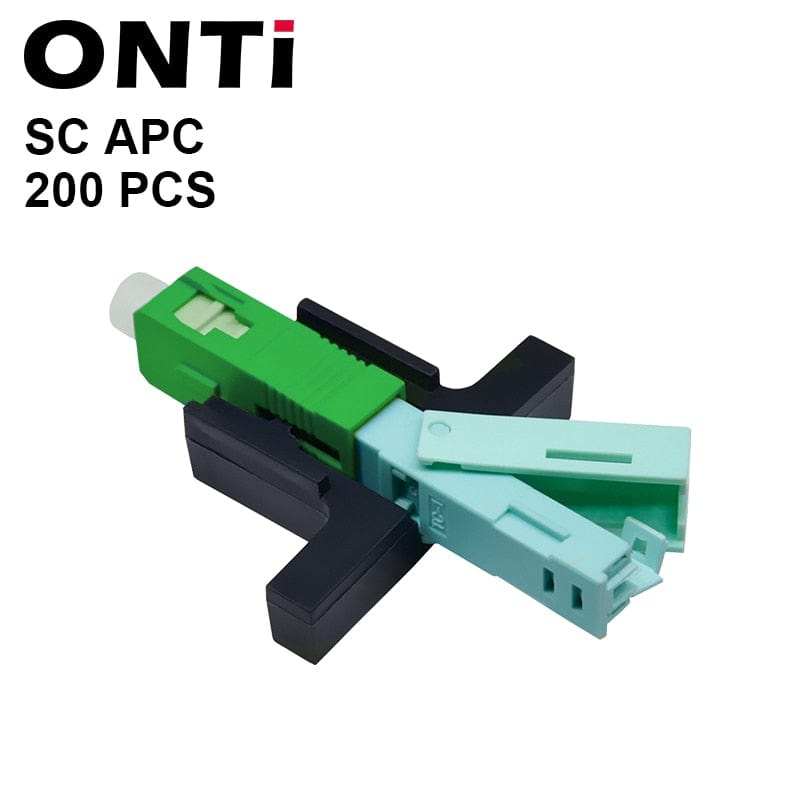

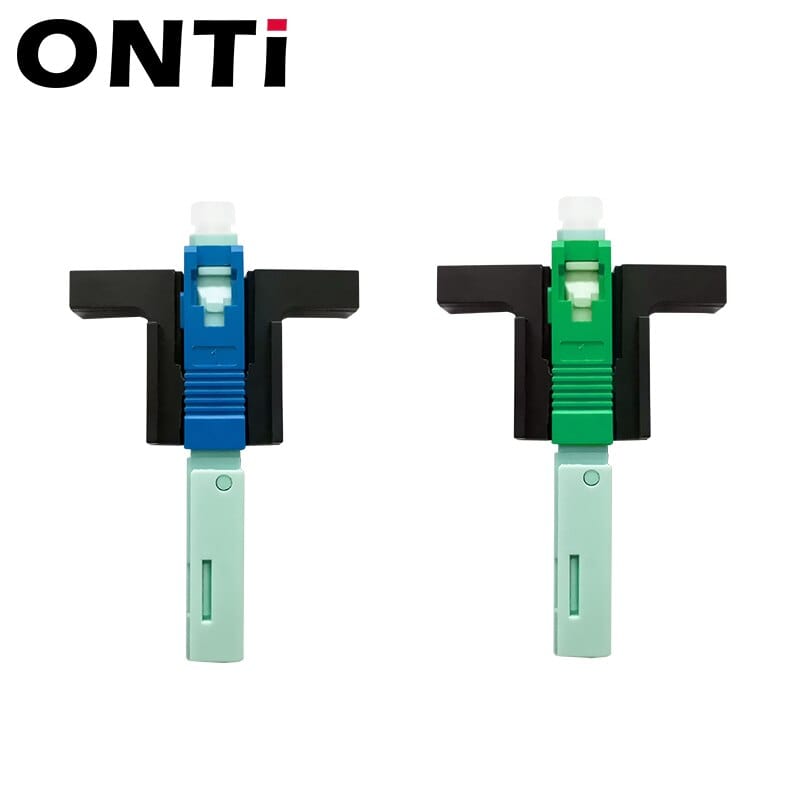

Product : SC/APC FTTH Fiber Optic Fast Connector
Model Number: ONT-SC-06QC / ONT-SC-06QCA
Insertion loss: less than 0.3dB (1310nm & 1550nm)
Fiber Type: Single Mode
Durability: 500 Times
Connector Type: SC/APC
Certification: CE
Application for: FTTH FTTB FTTX Network
Specifications:
The Reusable SC Connector Field Optical Fast Connector is designed for field use in Drop Flat (Low Friction) cables up to 3 mm and / or 2 to 3 mm Optical Cords in FTTH networks.
Easily assembled, it does not require any special tools other than standard fiber optic preparation tools (cable stripper, fiber stripper, cleavage guide, cleaver and cleaning components).
It is designed for simple and fast mechanical termination in the field, making it possible to reuse without losing its characteristics.
Features:
• Reusable connector without loss of features
• APC/UPC pre-polishing
• Simple and quick assembly
• Lower installation time 3 min.
• Low Insertion Loss = 0.3dB
• Return Loss: = - 40dB
• Reflection Rate: = 45 ~ 53dB
• Operating Temperature: -40 ~ + 75 ° C
