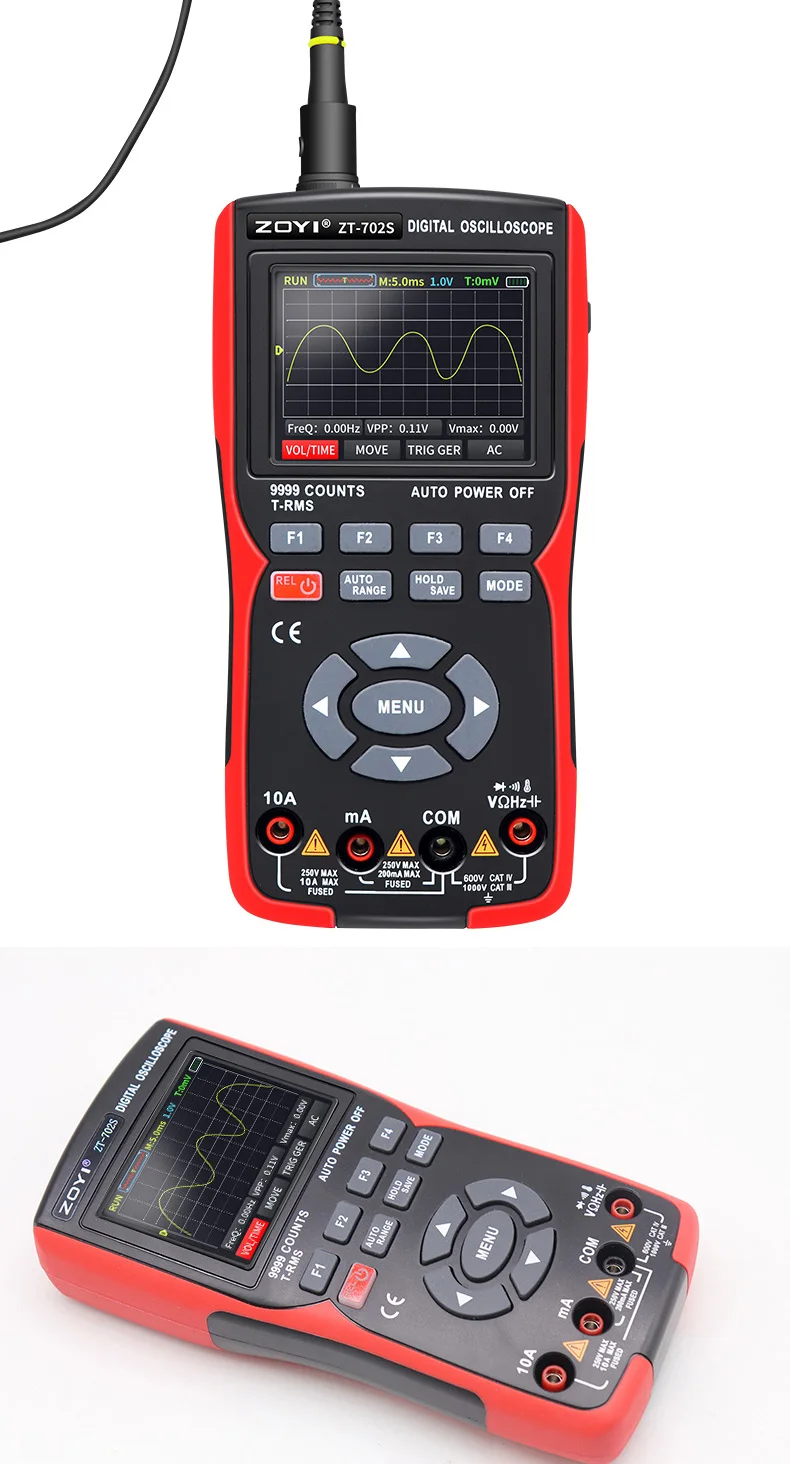

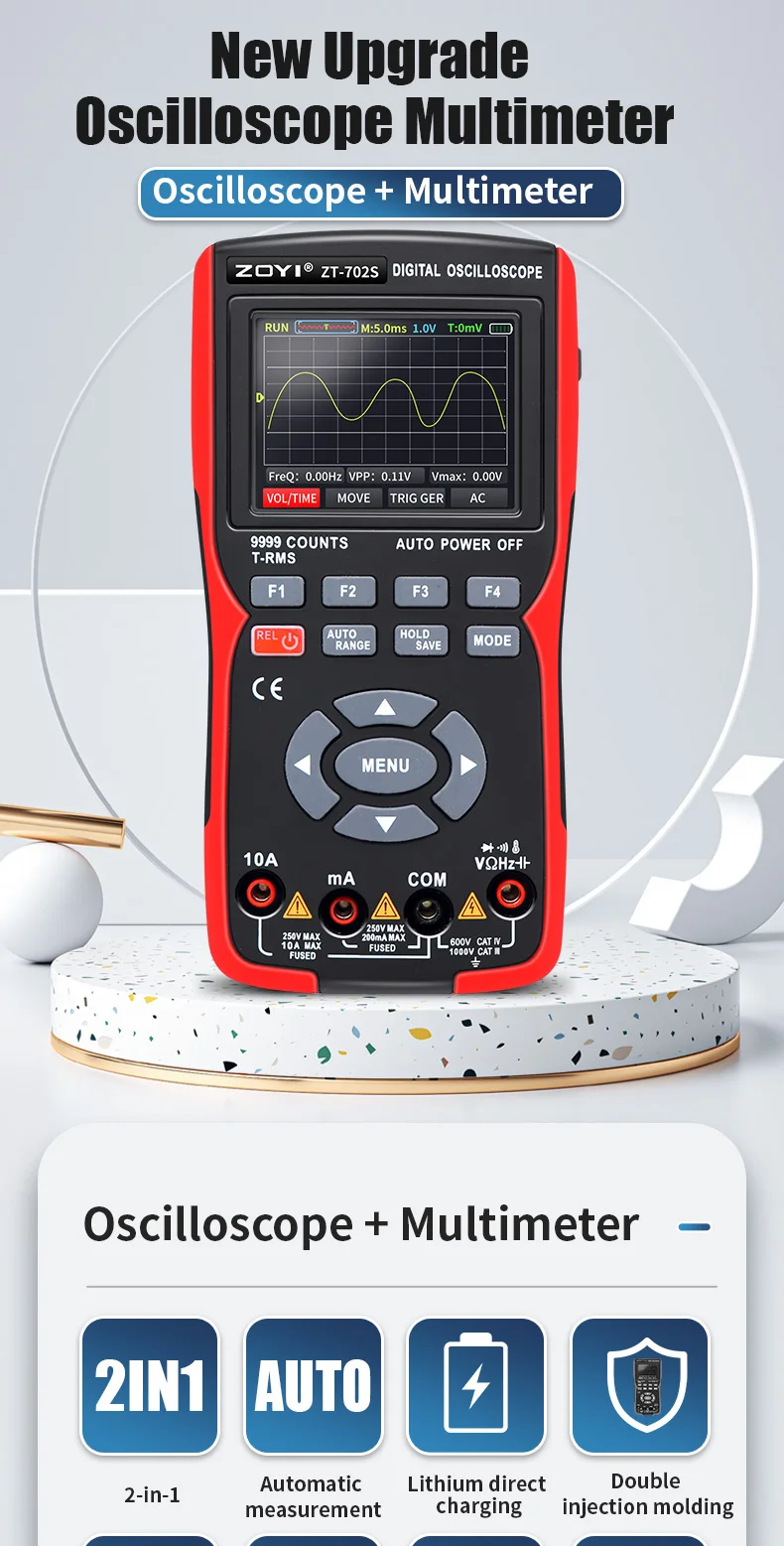

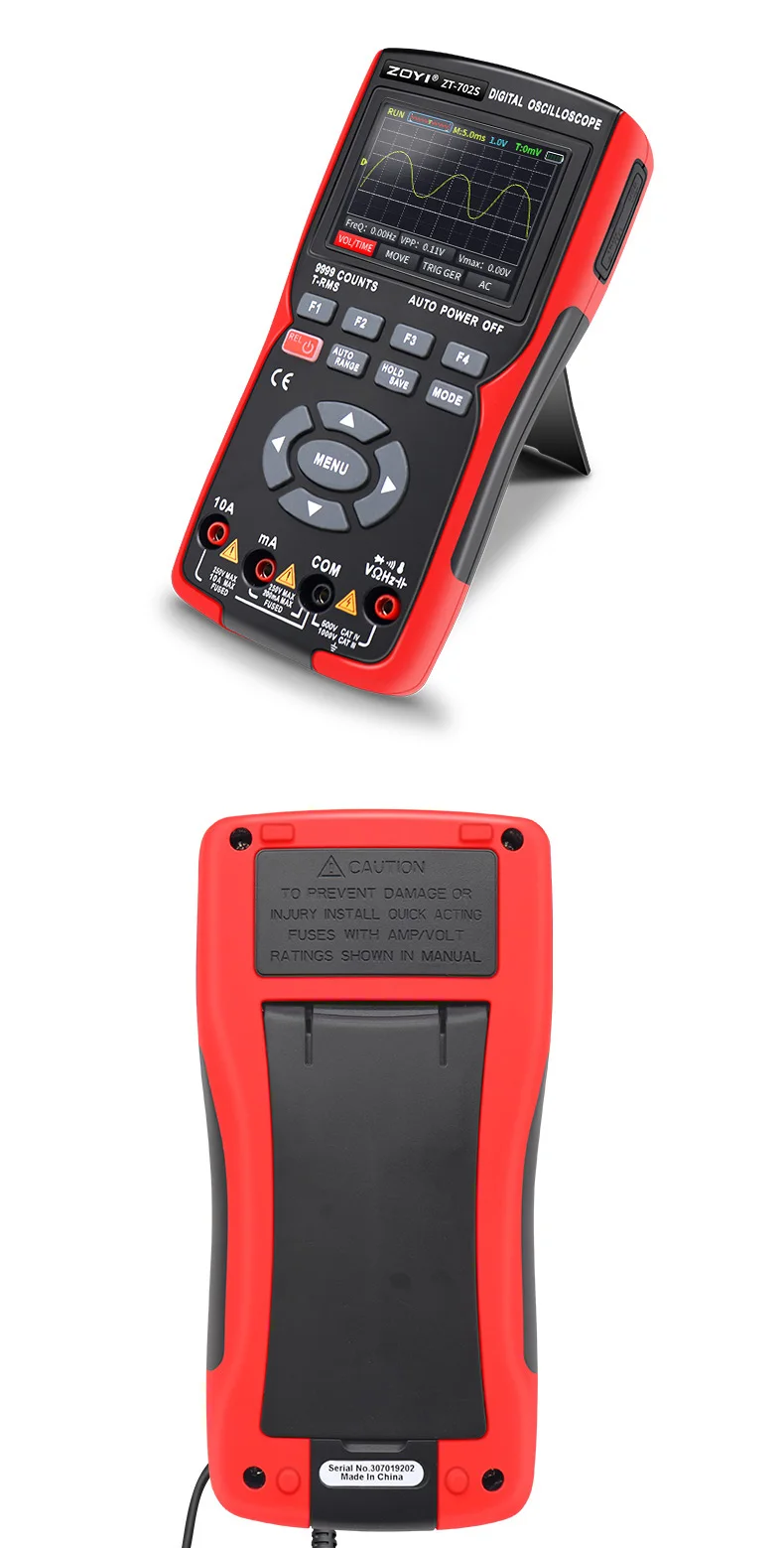

![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/S1c9a405aa748409dbfc229517b96ea67B_961x.webp?v=1699805154)
![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/S456e87720fd441a2b46624e176f2aa7aM_961x.webp?v=1699805148)
![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/S6188c682070e4a289b31d714ad59ad87h_961x.jpg?v=1699805063)
![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/Sa4c6c8b09a5a4795a640e2f7516d4a25m_961x.jpg?v=1699805057)
![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/Se27abfd915394b61807a26cfd6f25e2bg_961x.jpg?v=1699805049)
![ZT-702S 2In1 Digital Oscilloscope Multimeter Real-time sampling rate 48MSa/s True RMS 1000V Professional Tester with 2.8" screen](http://wowza.com.au/cdn/shop/files/S7f6ec9bfedaf43a08996d7ae1a31bda5c_961x.jpg?v=1699805045)
![47895537484079](http://wowza.com.au/cdn/shop/files/Sc233cef2a9a04d85bfffc152184a50b2s_961x.webp?v=1699805037)
SPECIFICATIONS
DIY Supplies: ELECTRICAL
AC Voltage: 0.1mV~750.0V
Display Type: Digital display
DC Voltage: 0.1mV~999.9V
AC Current: 0.001A~10A
Measuring Resistance Range: 0.01Ω~99.99MΩ
Certification: CE
Certification: FCC
Certification: RoHS
DC Current: 0.001A~10A
Measuring Capacitance Range: 0.001nF~99.99mF
Operating Mode: Auto+Manual
Model Number: ZT-702S
Is Smart Device: No
Measuring Inductance Range: /
Dimensions: 177*89*40mm
Operating Temperature: -20 - 10000 ℃
Frequency: 0.01Hz~999.9kHz
Diode: Yes
On/Off beep: Yes
True RMS: Yes
Data Hold: Yes
Screen backlightAuto Power Off: Yes
Low battery alert: Yes
Display: 9999 Counts
Material: ABS+TPE
Sampling Rate: 3 times/sec
Broadband: 10MHz
Sampling method: Real-time sampling
Real-time sampling rate: 48MSa/s
Input Coupling: DC,AC
Input impedance: 1Ω2,@16pf
Probe attenuation: X1,X10
Maximum input voltage: 150V(DC+AC peak)
Sampling rate range: 1.5Sa/s-48MSa/s
Waveform interpolation: (sinx)x
Sweep speed range: 50ns/div-20s/div
Time base accuracy: 20ppm
Recording length: Up to 65Kbyte

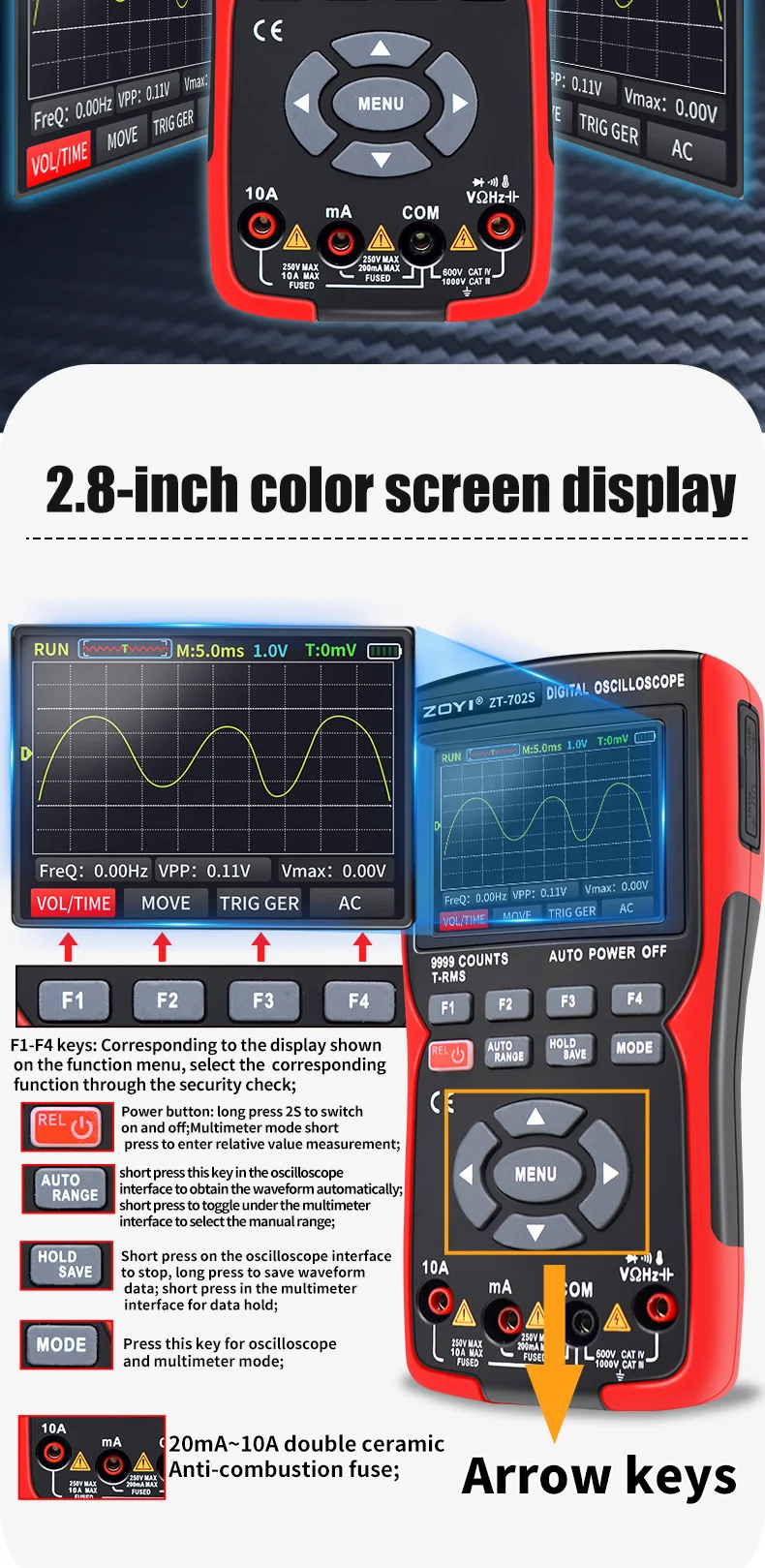

Display size: 2.8" HD colour screen
